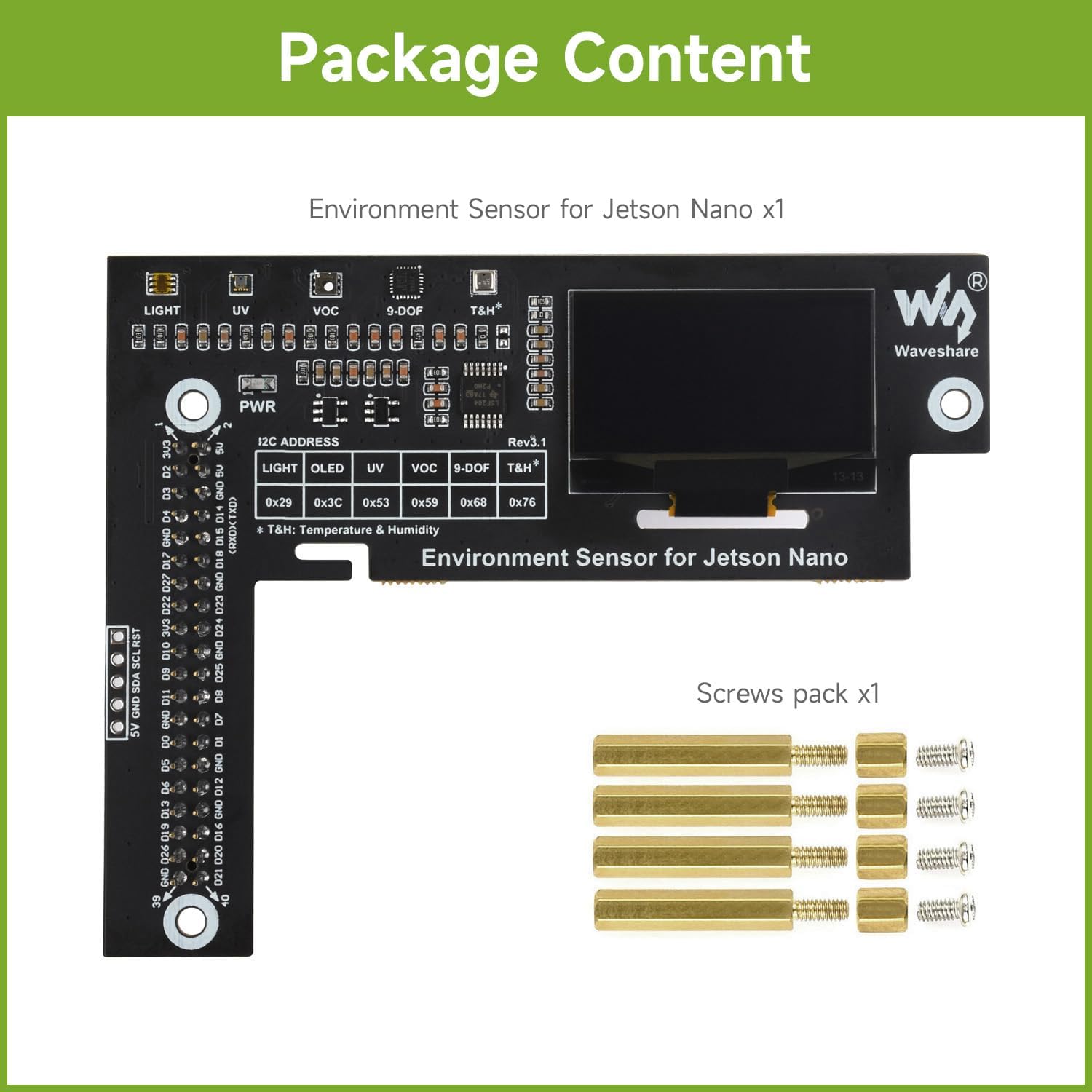

Waveshare Environment Sensors Module Designed for Jetson Nano I2C Bus with 1.3inch OLED Display
$90.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by ecoarmourpestcontrol.com.au
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$90.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by ecoarmourpestcontrol.com.au
Free 30-day returns Details
Product details
| Management number | 212250207 | Release Date | 2026/04/06 | List Price | $36.00 | Model Number | 212250207 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- This environment sensors module gives Jetson Nano Developer Kit the ability to collect environment data like temperature & humidity, air pressure, ambient light intensity, VOC, IR ray, UV ray, etc.It can also be used to build a robot that can detect motion and orientation.
- Onboard TSL25911FN digital ambient light sensor, for measuring IR and visible light. Onboard BME280 sensor, for measuring temperature, humidity, and air pressure
- Onboard ICM20948 motion sensor, accelerometer, gyroscope, and magnetometer. Onboard Si1145 sensor, for measuring IR/UV rays
- Onboard SGP40 sensor, for detecting ambient VOC. Onboard 1.3inch OLED display, for displaying environment data in real time
- I2C bus, allows reading and displaying data by just using two wires. Comes with development resources and user manual (python examples)
| Brand | waveshare |
|---|---|
| Platform | Android |
| Model Name | Waveshare Environment Sensors Module |
| Item Weight | 0.01 Kilograms |
| Manufacturer | Waveshare |
| Total PCIe Ports | 1 |
| Compatible Devices | Jetson Nano Developer Kit |
| Compatible Processors | NVIDIA Jetson Nano |
| RAM Memory Technology | LPDDR4 |
| Memory Slots Available | 2 |
| Main Power Connector Type | 12V power jack |
| System Bus Standard Supported | SATA 3 |
