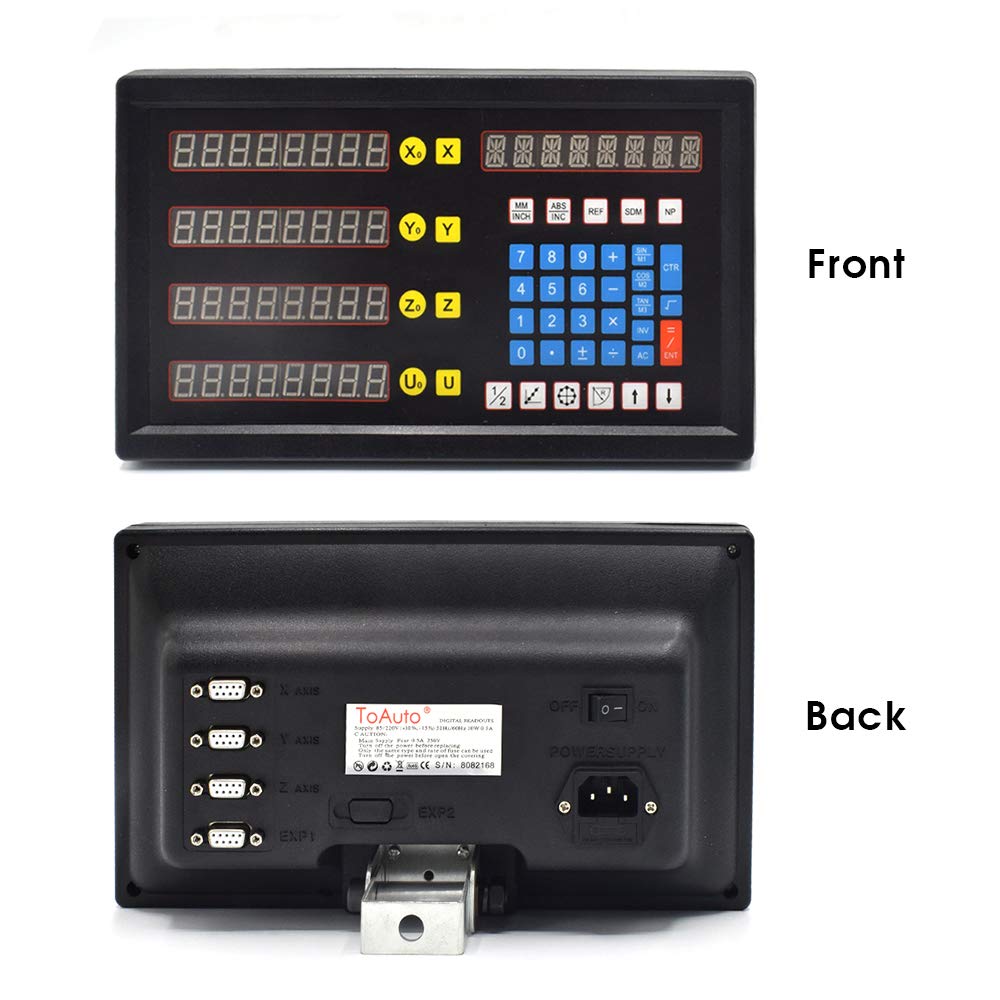

TOAUTO 4 Axis DRO Digital Readout Display Reading Read Out 5um High Resolution for Lathe Bridgeport Milling Machine,DHL Shipping,3-7 Business Days

1. Basic function : Reset MM/inch Mode Enter dimensions 1/2 function ABS/INC Mode Clear 200 sets SDM datum NON-Volatile memory Sleeping mode Ref datum memory function linear compensation Non-linear error compensation 200 sets subdatum function Special functions : Linear Drilling PCD function Chambering Tool compensation function Machining of oblique plane Calculator Machining function of the grinding machine Machining function of lathe Machining function of EDM Specifications: Model : 4Axis Digital Readout Supply Voltage range : AC 86V~240V; 50~60Hz Power consumption : 15VA Operating temperature : 0~45 degree centigrade Storage temperature : -30~70 degree centigrade Relative humidity : Less than 90% Readout allowable input signal : TTL square wave Allowable input signal frequebcy : Less than 5M Hz Max resolution of digital display length : 5µm Min resolution of digital display angle : 0.0001/pulse Weight : 2kg Packing Size : 36x14x25cm Display Advantage : Having a good capacity of resisting disturbance,durable keyboard,easy to change Package Included : 1pc 4Axis DRO Digital Readout 1pc Mounting Arm 1pc Bracket 1pc Power Cable 1set Mounting Screws 1pc English User Manual

• 【HIGH PERFORMANCE】- DRO 4axis display with wide screen offers excellent long-distance viewing while you are processing on the machine. Preset parameter ,high repeatability of the measurement . Having a good capacity of resisting disturbance,durable keyboard,easy to change.
• 【HIGH RESOLUTION】Display reading is accurate to 5um or 1um ,the displayed resolution is adjustable accordingly. ( Make sure the resolution match linear scale accuracy) .Wide working voltage range AC80V~260V/50Hz~60Hz , of course can work with 110V or 220V (US Plug).
• 【MULTI-FUNCTION】To meet different processing requirements with various of function, including PCD function , Chambering, 1/2 function, R functions，Tool compensation,Machining of oblique plane,Calculator, Machining function of grinder/lathe/EDM. Also has the basic functions of Preset, MM/inch, ABS/INC mode, Memory function etc.
• 【WIDELY APPLICATIONS】 This 4Axis DRO is commonly fitted to machines, especially for metal working — lathes, cylindrical grinders, milling machines, surface grinders, boring mills and other machine tools — to allow the operator to work faster with higher accuracy.
• 【FREE BRACKETS+SCREW SET】All accessories are included for easy installation and operation, mounting arm , bracket and screws , also include the English user manual in DRO box. Offer 2 year after-sale warranty and lifetime technical support.
