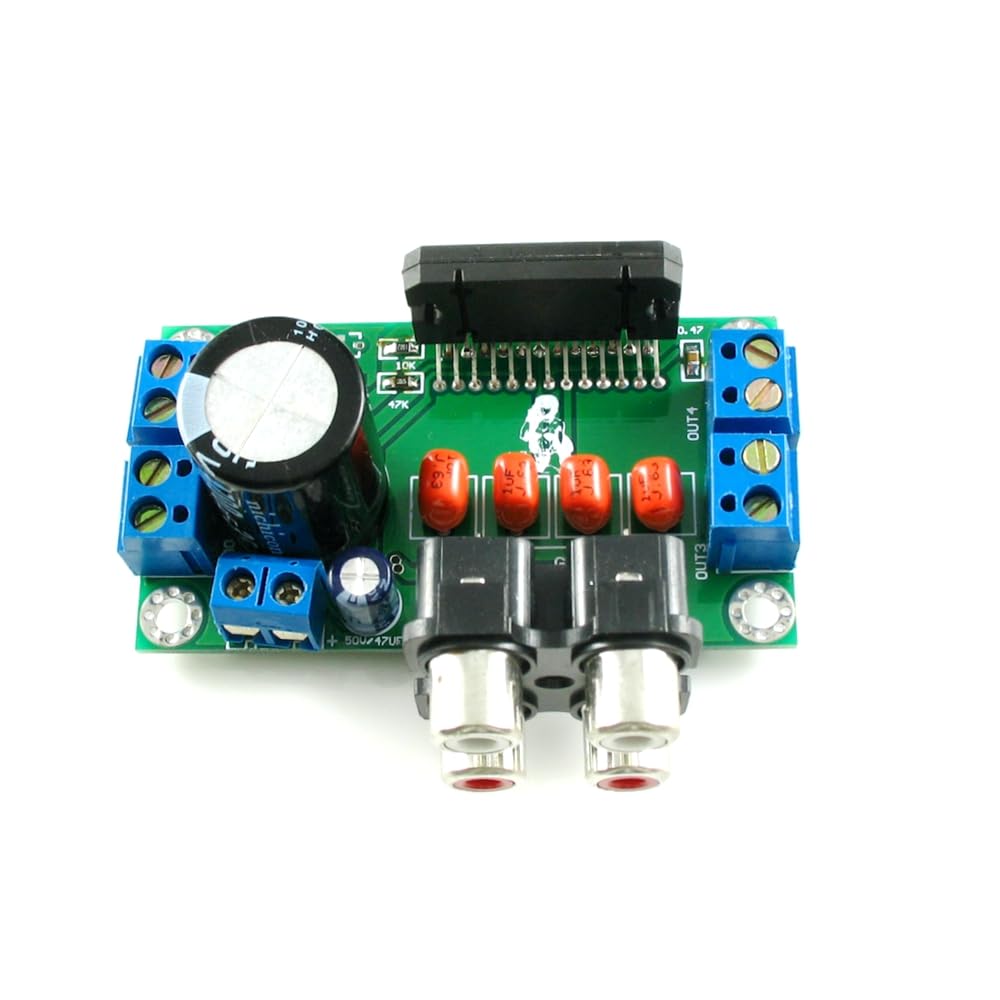

TDA7850 HiFi AB Class Automotive Power Amplifier 50W * 4 Channel MOSFET Full Bridge Power Amplifier Finished Board AMP with Heat Sink

Product Description: TDA7850 is a groundbreaking MOSFET technology Class AB audio power amplifier, Featuring a Flexiwatt 25 package, designed specifically for high-power car radios. The completely complementary P-channel/N-channel output structure allows for rail to rail output voltage oscillation, Combined with high output current and minimal saturation loss, A new power benchmark has been set in the field of in car radio, Compared to similar products, it has the smallest distortion performance. TDA7850 integrates a DC offset detector. Operating supply voltage DC12-18V Max. output power VS=14.4V, RL=4R 50W, VS=14.4V, RL=2R 85W maximum output power Under 14.4V power supply, 4R 50W X4, 2R 85W X4 THD Distortion=PO=4W 0.006%. PO=15W/2R 0.015% SVR Supply voltage rejection f=100 Hz; Vr=1Vrms 75DB Package: 1pcs TDA7850 HIFI AB Class Automotive Power Amplifier 50W * 4 Channel MOSFET Full Bridge Power Amplifier Finished Board AMP with Heat Sink

• The TDA7850 integrates a DC offset detector, output voltage swing which combined with high output current and minimized saturation losses sets new power references in the car-radio field, with unparalleled distortion performances.
• Operating supply voltage DC12-18V Max. output power VS=14.4V
• RL=4R 50W, VS=14.4V, RL=2R 85W maximum output power
• Under 14.4V power supply, 4R 50W X4, 2R 85W X4 THD Distortion=PO=4W 0.006%. PO=15W/2R 0.015%
• SVR Supply voltage rejection f=100 Hz;
• Vr=1Vrms 75DB
