TD1230 withstand voltage tester calibration equipment calibrator

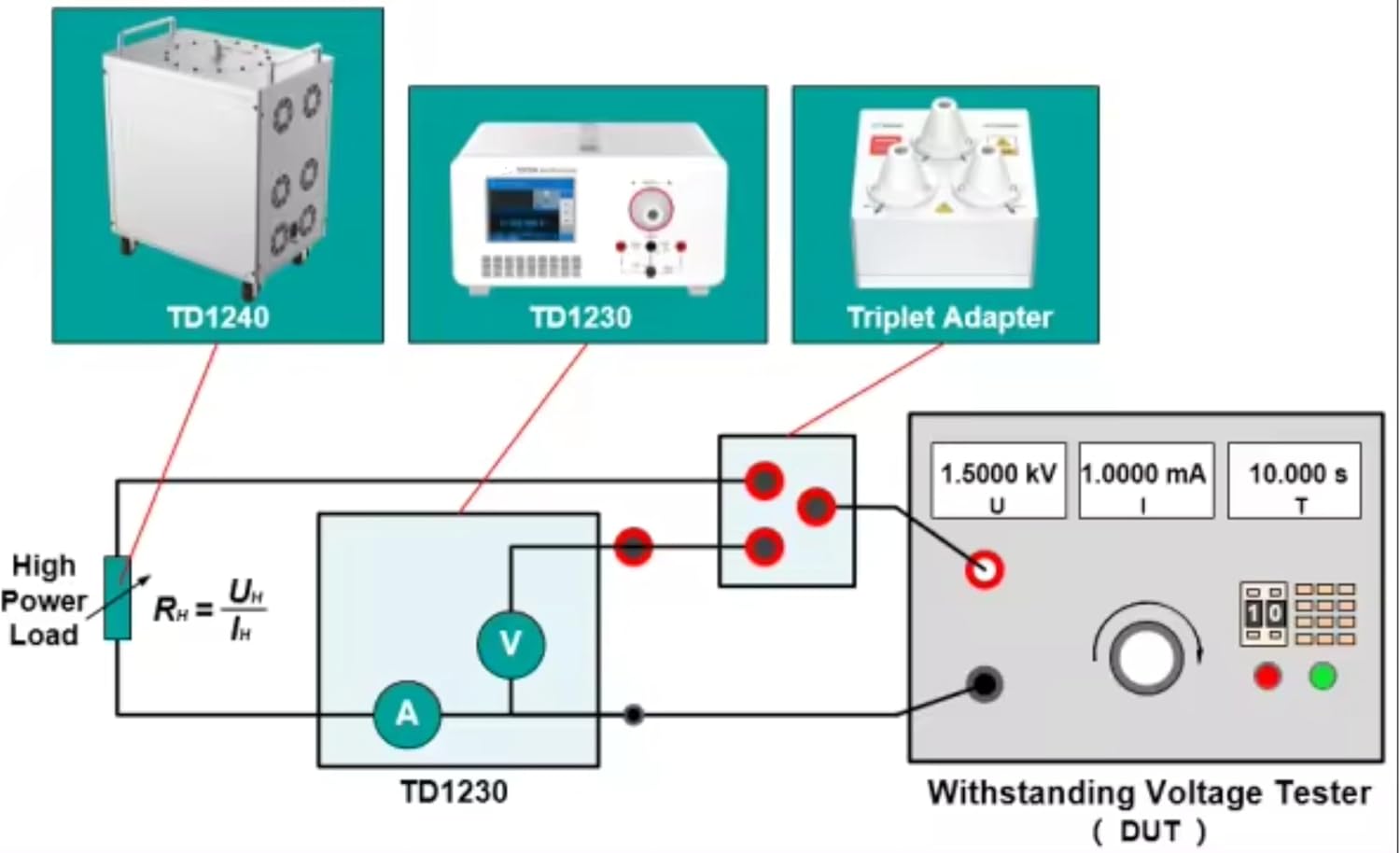

TD1230 withstand voltage tester verification device TD1230 is suitable for calibrating AC and DC withstand voltage testers, the withstand voltage part of comprehensive safety performance testers, the withstand voltage part of insulation withstand voltage testers, etc. feature AC/DC voltage measurement: 100 V~15 kV. AC/DC current measurement: 0.1 mA ~250 mA. Distortion/ripple function and voltage duration test function. Built-in adjustable resistive load, fineness is 1kΩ. An optional high-power load bank (TD1240) helps calibrate the output capacity. Oscilloscope and data statistical analysis functions. LCD touch screen. Press the key to set the output value. Wire connection notice.

• Wide range measurement: The TD1230 withstand voltage tester verification device provides AC and DC voltage measurements from 100V to 15kV and AC and DC current measurements from 0.1mA to 250mA, ensuring comprehensive testing capabilities.
• Advanced analysis functions: It has distortion/ripple measurement, waveform display, and statistical analysis functions to facilitate real-time waveform evaluation and obtain accurate results.
• Accurate current verification: Built-in adjustable resistive load (6 kΩ to 8MΩ) with 1 kΩ accuracy enables accurate current verification, which is critical to maintaining test integrity.
• Intuitive interface: Adopts LCD touch screen and intuitive controls to ensure user-friendly operation and improve the efficiency of the calibration process.
• Optional enhanced functions: The optional high-power load box (TD1240) expands the output capability, while the oscilloscope and data statistical analysis functions provide additional versatility for testing needs.
