Self-Leveling Paver Pedestals with 4mm (5/32") spacers - Support 650Kg (1430 lbs) - 10 Pack

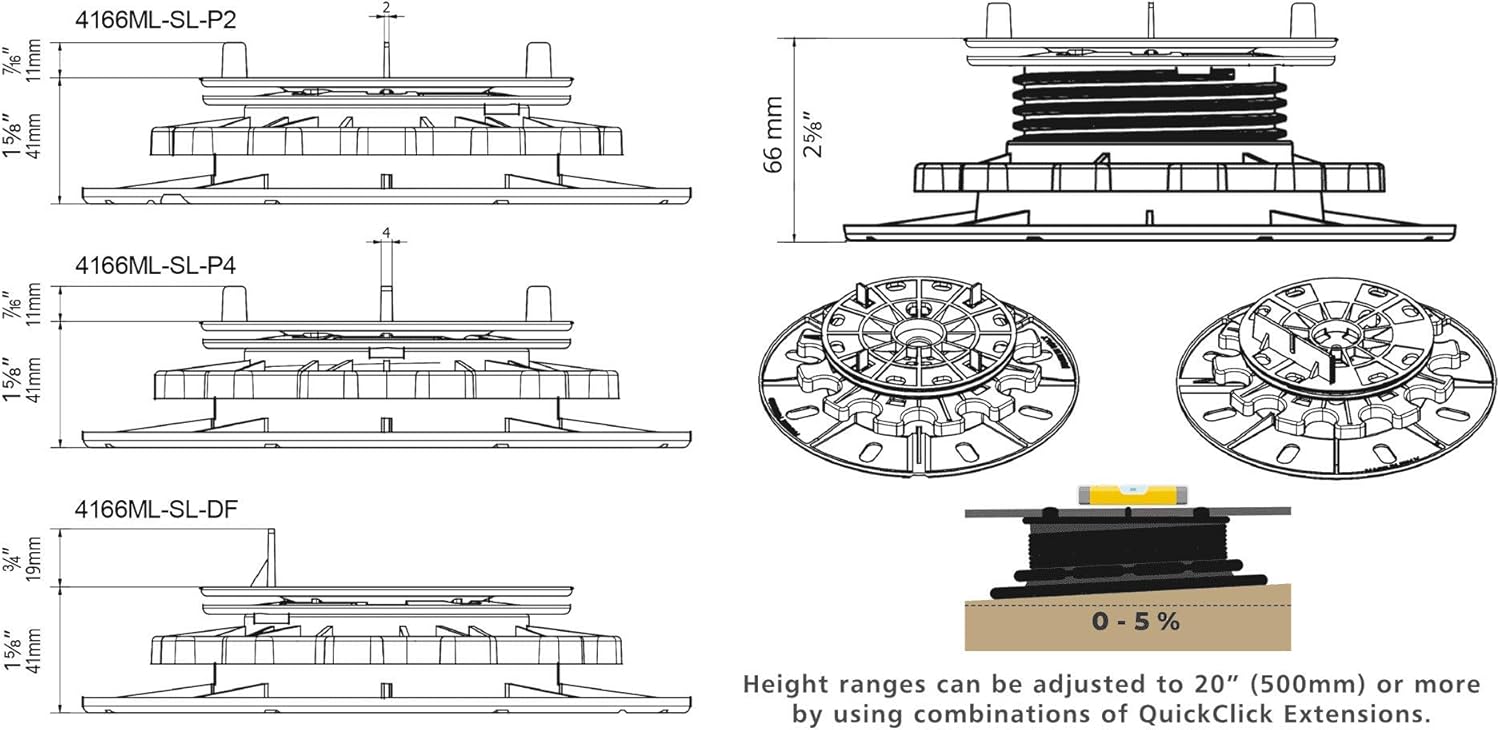

StrataRise Multi-Level 4166 Self-Leveling Pedestals come with either 5/32" or 5/64" (2mm or 4mm) thick tile/slab spacers, will automatically compensate for slopes from 0° to 5° and are adjustable in height from 1.6" to 2.6" (41 to 66mm). The adjustable height can be increased by using one or more of our QuickClick, bayonet fitting, extension pieces. The system can be extended to 20" (500mm) high, or more as required. These self-leveling pedestals make it easy to achieve perfect flatness of the final floor or paved area. The system is very easy to use and aids quick, precise and professional installation. Each support is composed of a threaded self-leveling head section, with 4 spacer fins which are individually removable to enable the supports to be used in areas where no separation is required, such as under the centres of large slabs, or at sides. An easy to operate threaded adjustment ring makes raising or lowering the head really quick and precise. Height adjustments can be made without removing the paver or tile thus allowing for extremely easy and fast installation. The large 8" (200mm) base plate provides stable support on most surfaces. Scribe marks are provided on the underside to assist in trimming for use at sides and corners of installations. An optional 1/8" (3mm) thick anti-slip, cushioning, rubber base ring is available for use on membranes, etc. This effectively reduces transmitted noise where pavers are mounted on balconies or roof areas. We recommend the use of our optional acoustic cushioning ring for the support head area for tile and paver installations. These help to bed corners securely, prevent any rattling, and reduce transmitted noise through the support system.4166ML self-leveling pedestal supports are tested to withstand loads of 1430lbs (650Kg) at their weakest setting, i.e. maximum height adjustment with just one thread engaged.

• Self-Leveling - 0° to 5° slopes.
• With spacer fins for tile/paver separation.
• Suitable for most types of pavers, slabs and tiles.
• Very Quick and Easy installation
• Standard height adjustment from 1.6" to 2.6" (41mm to 66mm), or higher with extenders.
