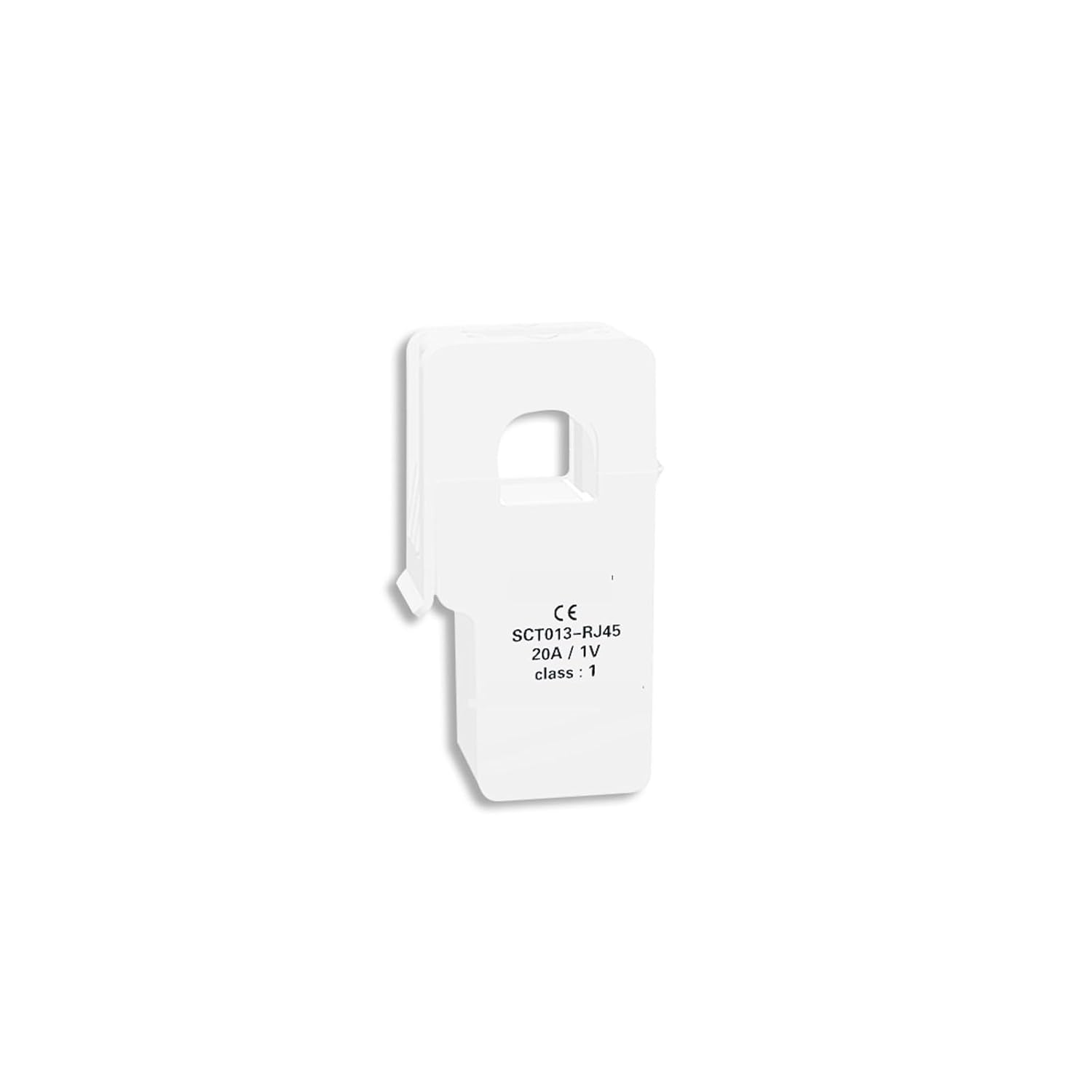

SCT013-RJ45 Input 5A 10A 15A 20A 25A 30A 50A 60A 100A Output 0.333V Accuracy 1% Split Core Current Sensor(60A-0.333V 1)

Sensor Blocks13mm hole Split Core Current , Current Clamp SCT013-RJ45IntroduceYHDC's SCT013 series of split core current have a patented appearance design to be small CT and easy to open yet maintain the accuracy required for kWh meters.There are different output methods such as RJ11, RJ45 and 3.5mm audio . The advantage of a split core CT is that it can be easily moved into position without disturbing or disconnecting the main cables it is monitoring.ApplicationCurrent measurement, monitoring and protection for electrical wiring and equipment.Current and power measurement for electric motors, lighting, air compressor, heating and ventilation system, air-condition equipment and automation-control system.Current, power and energy monitoring device.Relay protection device.Characteristic:Safety lock buckle, easy installation, RJ45 output.Technical index:Mounting type: Free hanging (In-Line)Material of core: FerriteApplicable standards: GB20840-2014Operating temperature: -25ºC ~ +70ºCStorage temperature: -30ºC ~ +90ºCFrequency range: 50Hz-1KHzWaterproof grade: IP00Dielectric strength: Input (bare conductor)/Output AC 800V/1min 50HzOutput/Housing AC 3.5KV/1min 50Hz==========High-concerned chemical : Noneis_customized : YesCoil Structure : Split core current Model Number : SCT013-RJ45Coil Number : current Phase : SINGLECertification : Use : Current
