Precision Horizontal Vertical Milling Indexing 4"/ 100 Rotary Table, M6 Clamp Kit With Suitable Tailstock & Small Chuck & Fixing T Nut Bolts (With 50 MM 4 Jaw Self Centering Chuck)
Product details
| Management number | 215636447 | Release Date | 2026/04/12 | List Price | $78.00 | Model Number | 215636447 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Description of 4" (100 mm) rotary table designed for smaller milling machines. Table diameter 100 mm table is graduated 360 degrees. Worm gear ratio -1:36, which means that the 1 handle rotation shall turn the table by 10 degrees. Center height in vertical position: 2-1/16" (50 mm approx) excluding chuck. Hand wheel is graduated in divisions of 10 min & can be set to zero. Can be mounted both in horizontal & vertical position. Supplied with a small chuck, made from high quality chuck, the body of which is made from sg iron & jaws are of tool steel hardened & ground. Supplied with a mounting back plate & fixing tee nuts with screws. The back plate has been drilled in a manner that it will fit to a 3 slot or a 4 slot rotary table. A tool steel back plate is supplied with fixing t nuts to mount the chuck on it. Back plate is drill in a manner that it will fit both 3 as well as 4 slots table. The back side of the plate has a locating spigot to center the mounting on to the table.
- Quality Tool Set Of 4" Regular Rotary Table, M6 Clamp Kit With A Suitable Tailstock & Small 50 MM 4 jaws Self Centering Chuck With Back Plate & Fixingst Nut Bolts
- Chuck Body Is High Grain SG Caste Iron & Jaws Are Of Tool Steel. Jaws Are Hardened & Ground.
- A Tool Steel Back Plate Is Supplied With Fixing T Nuts To Mount The Chuck On It. Back Plate Is Drill In A Manner That It Will Fit Both 3 As Well As 4 Slots Table. The Back Side Of The Plate Has A Locating Spigot To Center The Mounting On To The Table.
- It Can Be Mounted Both In Horizontal & Vertical Position. Hand Wheel Is Graduated In Divisions Of 10 Min & Can Be Set To Zero.
| Color | Wrinkle Black Paint Finish & Ground Finish |
|---|---|
| Brand Name | ASSORTS |
| Manufacturer | ASSORTSMACHINETOOLS |
| Material Type | CASTE IRON BODY & ALLOY TOOL STEEL |

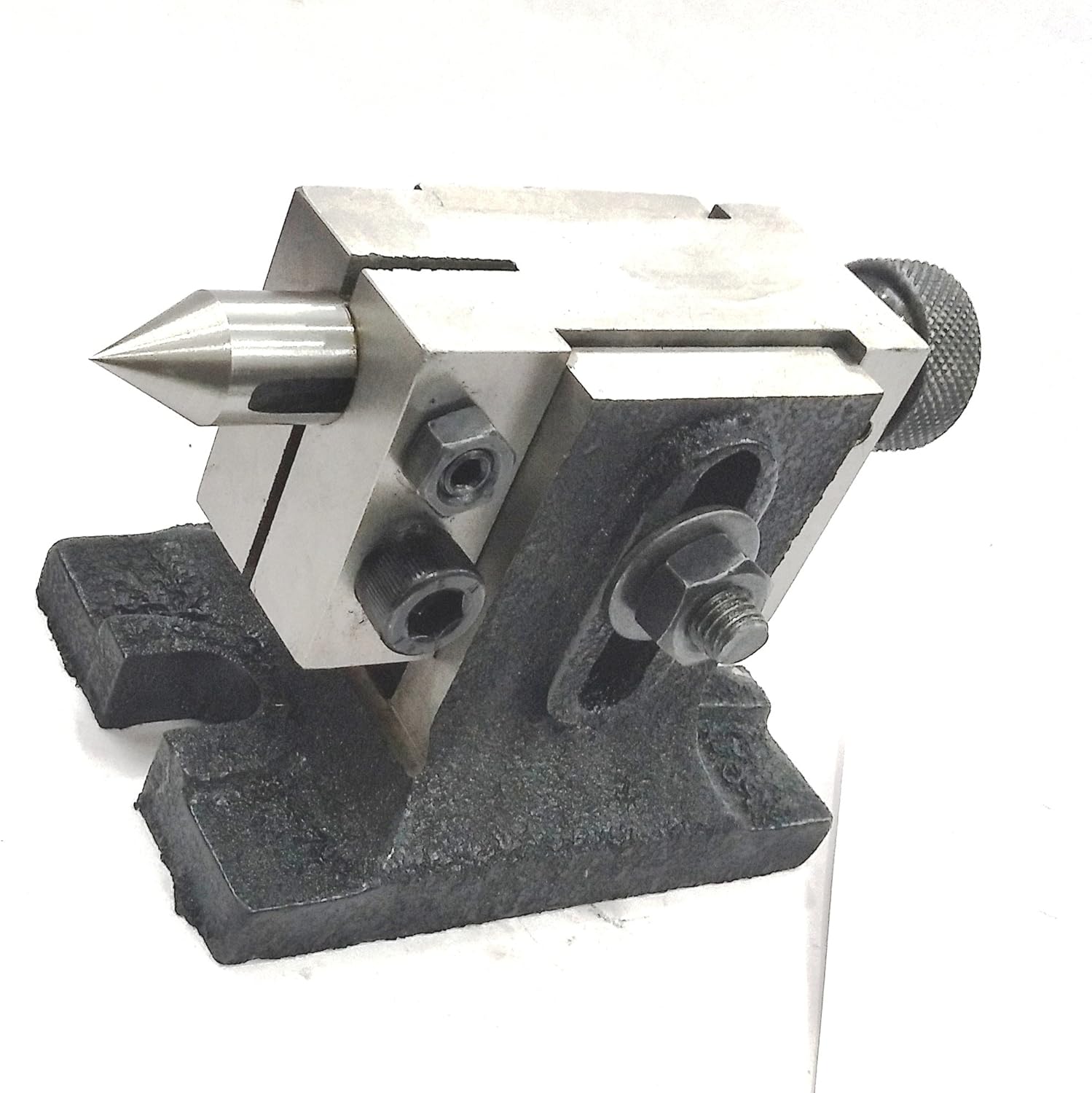

| Included Components | ROTARY TABLE, M6 CLAMP KIT, CHUCK, BACK PLATE & FIXING T NUTS & TAILSTOCK |
| Manufacturer Part Number | MRT-4R.70MMJ.4 |
