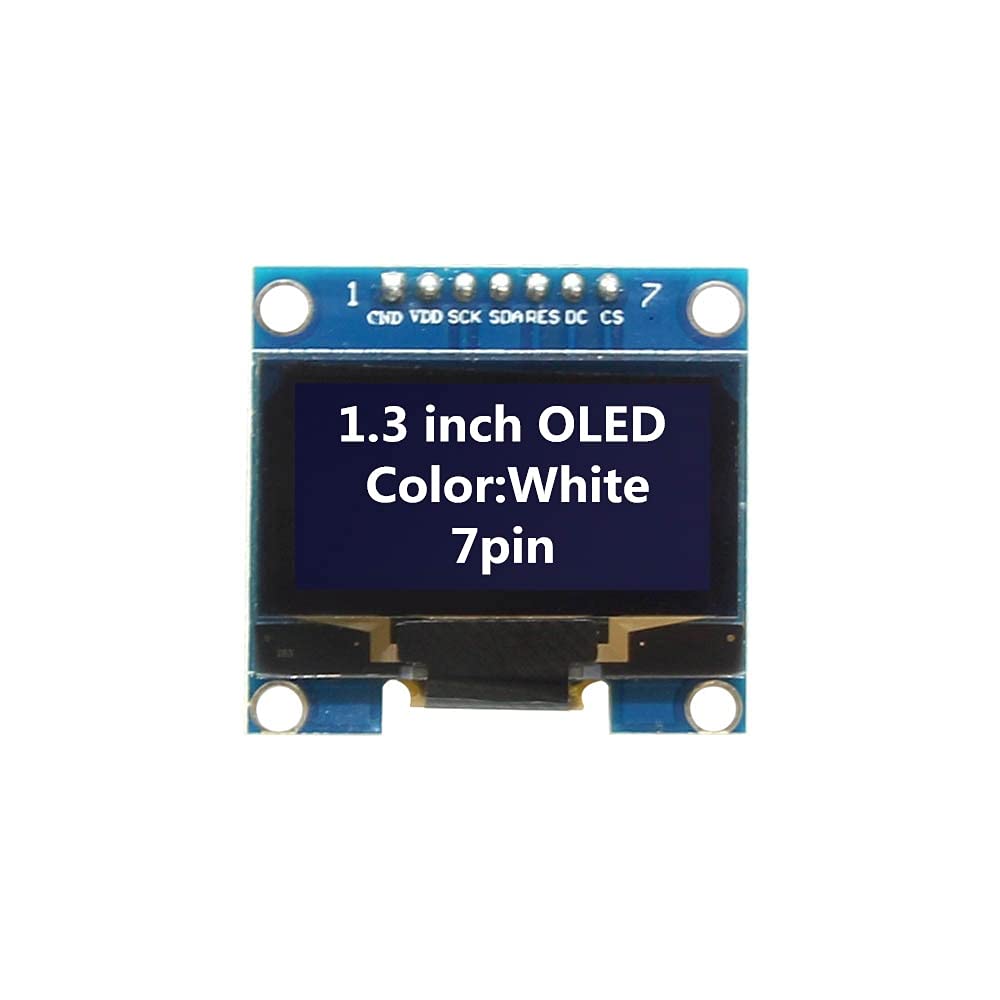

Lysee 3D Printer Parts & Accessories - 1.3 Inch OLED Module White Color 128X64 OLED LCD LED Display Module 1.3 IIC I2C SPI Communicate for DIY Kit - (Color: 1.3 7Pin White)

1.3 Inch OLED Module White Color 128X64 OLED LCD LED Display Module 1.3 IIC I2C SPI Communicate for Diy Kit1.3 4Pin OLED 100% brand new and high qualityResolution: 128*64Display area: 29.42 x 14.7mm/1.16"*0.58"Driving voltage: 3.3-5VOperating temperature: -40 ° to 70 °Interface type: IIC interfacPin definitions: 1> GND (power ground) 2> VCC (positive power supply) 3> SCL (clock line) 4> SDA (data line)1.3 7Pin OLED0.96 4Pin OLED Interface type: IIC interface Pin definition: GND, VCC, SCL, SDA 1.GND(OLED power supply 2.VCC (OLED 3.3~5V) 3.SCL(OLED IIC Clock line) 4.SDA(OLED IIC Cable)Note:0.96 4Pin OLED can only use IIC interface0.96 7 Pin OLED1, high resolution: 128X64 (and 12864LCD the same resolution, but the OLED screen more pixels per unit area)2, super wide viewing angle: more than 160 ° (maximum viewing angle display a screen)3, ultra-low power consumption: normal display 0.06W (far below the TFT display)4, wide supply range: DC 3V-5V (without any changes, directly compatible with common 3.3V and 5V power supply system)5, industrial grade: Operating temperature range -30 C ~ 70 C6, the ultra-small size: (length) 27.8MM * (W) 27.3MM * (thickness) 4.3MM7, support for multiple operating modes: 3-wire SPI, 4 wire SPI8, with chip select CS signal, you can achieve multiple SPI device on the same bus work9, compatible with 3.3V and 5V control chip I / O level (without any set, directly compatible)Pin Descriptions:GND: Power groundVCC: 3.3V or 5V power supplyD0: CLK ClockD1: MOSI dataRST: ResetDC: data / commandCS: Chip select signalNote:0.96 7Pin OLED can only use SPI interfaceItem specifics:Item type: Display ScreenModel number: 1.3 Inch OLED Module

• Color: 1.3 7Pin White
• GND: Power ground
• VCC: 3.3V or 5V power supply
• D0: CLK Clock
• D1: MOSI data
