Hantek Function Generator HDG3023C HDG3043C HDG3063C HDG3083C HDG3103C DDS Technology. 5-in-1 Generator Arbitrary Waveform, Pulse Function Harmonic Frequency Meter(HDG3023C)
Product details
| Management number | 211160185 | Release Date | 2026/04/04 | List Price | $310.65 | Model Number | 211160185 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

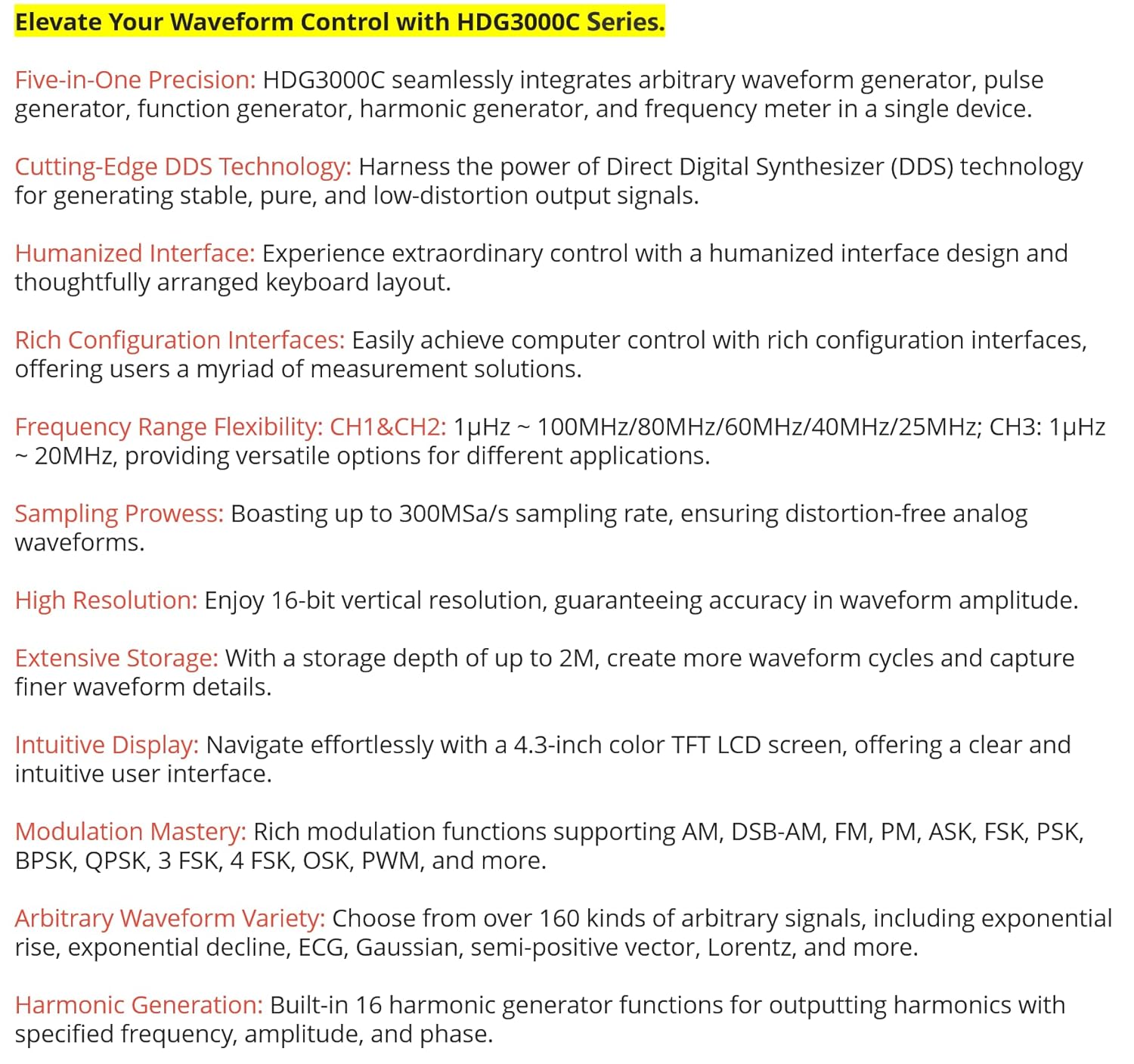

HDG3000C Series HDG3000C sets arbitrary waveform generator, pulse generator, function generator, harmonic generator, frequency meter 5 functions in one. It uses the DDS (Direct Digital Synthesizer) technology, and can generate stable, pure, and low-distortion output signal. Humanized interface design and keyboard layout give users extraordinary experience. Rich configuration interfaces can easily achieve computer control of the instrument, which provides users with more solutions for measurement. Frequency range: CH1&CH2: 1μHz ~ 100MHz/80MHz/60MHz/40MHz/25MHz;CH3:1μHz ~ 20MHz. Up to 300MSa/s sampling rate, no distortion of analog waveforms. 16-bit vertical resolution ensures the accuracy of waveform amplitude. The storage depth of up to 2M ensures the creation of more waveform cycles and better waveform details. Key Features A 4.3-inch color TFT LCD screen, a clear and intuitive user interface. Rich modulation function, support for AM, DSB - AM, FM, PM, ASK, FSK and PSK, BPSK, QPSK, 3 FSK, 4 FSK, OSK and PWM, etc. 1μHz frequency resolution: When the impedance is high, the amplitude range is 2mV~20Vpp. When the impedance is 50Ω, the amplitude range is 1mV~10Vpp. Built-in 80MHz high-resolution frequency meter. Standard communication interface: front USB 2.0 high speed (USB Host) and rear USB 2.0 full speed (USB Device). More than 160 kinds of arbitrary signals, such as exponential rise, exponential decline, ECG signal, Gaussian, semi-positive vector, Lorentz, dual-tone multi-frequency, DC voltage, etc. Built-in 16 harmonic generator function, output with specified frequency, amplitude and phase of harmonics, usually used in harmonic detection equipment or harmonic filter equipment test.
- Frequency range: CH1&CH2: 1μHz ~ 100MHz/80MHz/60MHz/40MHz/25MHz;CH3:1μHz ~ 20MHz.
- Up to 300MSa/s sampling rate, no distortion of analog waveforms.
- 16-bit vertical resolution ensures the accuracy of waveform amplitude.
- The storage depth of up to 2M
- 4.3-inch color TFT LCD screen, a clear and intuitive user interface
| Color | Multicolored |
|---|---|
| Model | YQH-HDG3023C |
| Brand Name | Hantek |
| Manufacturer | Hantek Qingdao |
| Item Dimensions | 8.27 x 4.33 x 6.3 inches |
| Specification Met | CE, ISO 9001, RoHS |
| Included Components | -HDG3023C |
| Warranty Description | 1 year warranty |
| Upper Temperature Rating | 60 Degrees Celsius |
| EU Spare Part Availability Duration | 1 Years |
