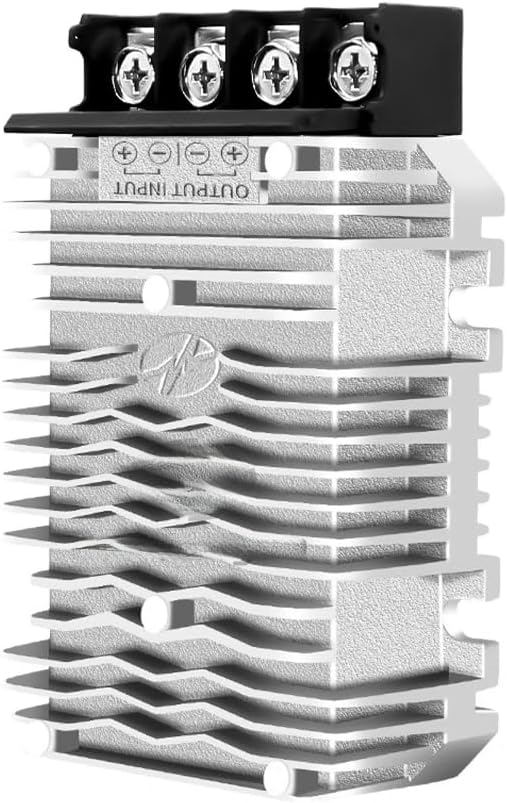

Generic 24V to 12V Step Down Converter, 18V-36V Input, 50A 600W, IP67 Waterproof, Aluminum Housing, DC to DC Buck Converter, DIY Power Supply Reducer Module
Product details
| Management number | 212396069 | Release Date | 2026/04/06 | List Price | $16.58 | Model Number | 212396069 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
SPECIFICATION- Module Type: Non-Isolated DC to DC Converter- Conversion Efficiency: max. 97%- Input Voltage: 24V DC- Input Range: 18V-36V DC- Output Voltage: 12V DC- Output Current: 50A- Rated Output Power: 600W- Voltage Regulation: <1%- Load Regulation: <2%- Ripple and Noise: 56-200mVp-p 20MHz- No-load Loss: 56-100mA Vin=24V- Operating Temperature: -40℃~+55℃- Waterproof Rate: IP67- Size: 3.94x3.15x1.42in- Net Weight: 1.28 lb.PACKAGE- 1 x 24V to 12V Step Down Converter- 4 x Wiring Terminal
- 【Range】24v to 12v step down converter accepts 18V-36V DC input voltages, and delivers a stable DC 12V at 50A, providing up to 600W of power for demanding applications
- 【Efficiency】18V to 12V step down converter utilizes advanced components achieving up to 97% efficiency, reducing energy loss
- 【Robust】24v to 12v step down converter encased in an IP67 waterproof aluminum housing with epoxy potting, protecting against water, dust and vibrations
- 【Safety】18V to 12V step down converter includes over-temperature, over-current, over-voltage, and short-circuit protection, ensuring safety and longevity for connected devices
- 【Compact】Palm-sized design of 24v to 12v step down converter facilitates easy installation and wiring in various applications

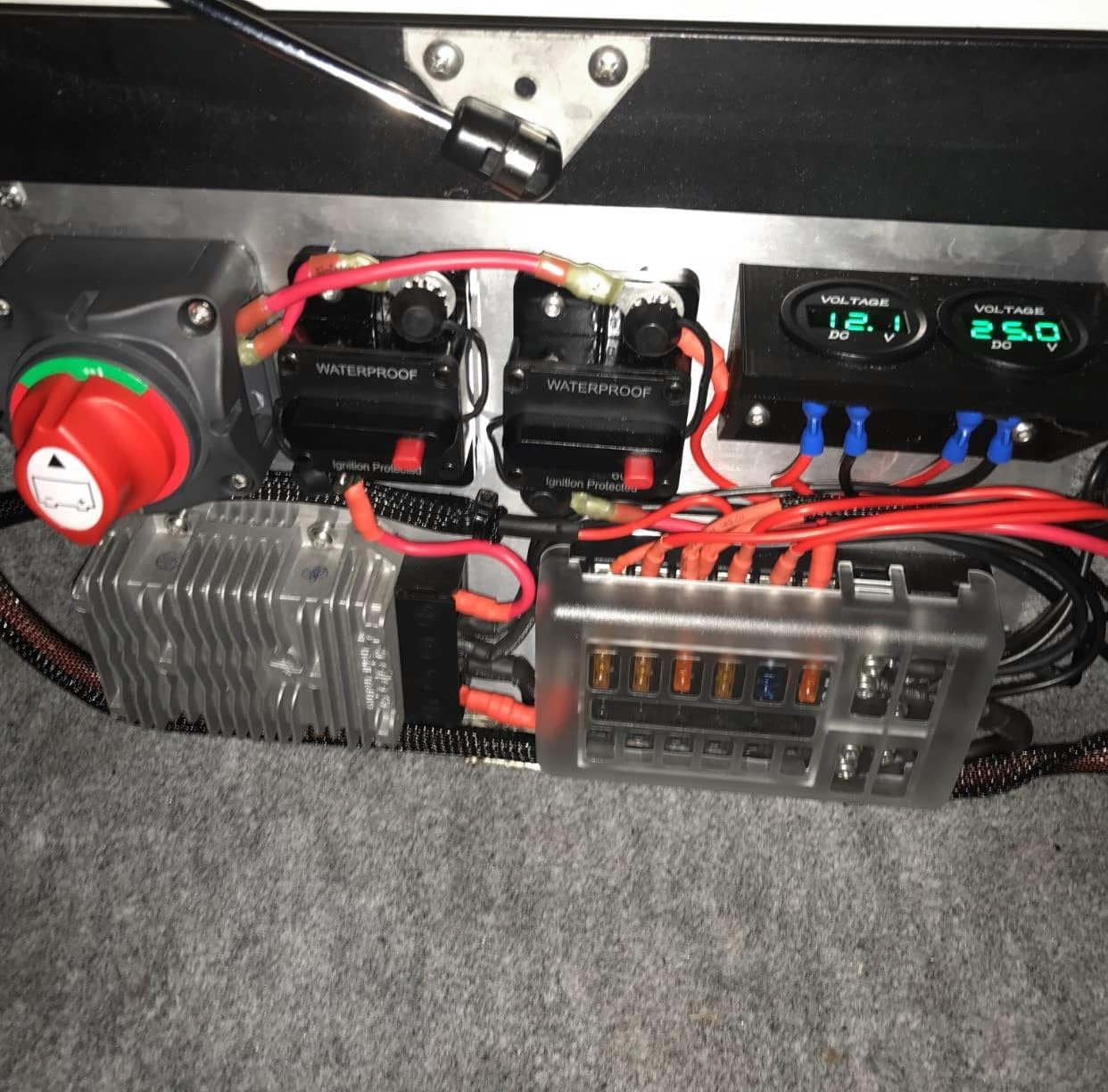

- 【Versatile】Suitable for a wide range of devices requiring stable DC 12V power, such as golf carts, club cars, motors, speakers, GPS systems, LED strip lights, and more
| Model | aeb50101-77ba-4a6c-9d58-09be6591d6eb |
|---|---|
| Brand Name | Generic |
| Manufacturer | Generic |
| Material Type | Aluminum |
| Mounting Type | DIN Rail Mount |
| Connector Type | Screw |
| Current Rating | 50 Amps |
| Number Of Poles | 4 |
| Centerline Length | 3.94 Inches |
| Specification Met | Ip67, Safety Standards |
| Number Of Contacts | 4 |
| Number of Positions | 4 |
| Warranty Description | Follow FBA Rules |
| Item Dimensions W x H | 3.94"W x 1.42"H |
| Upper Temperature Rating | 55 Degrees Celsius |
