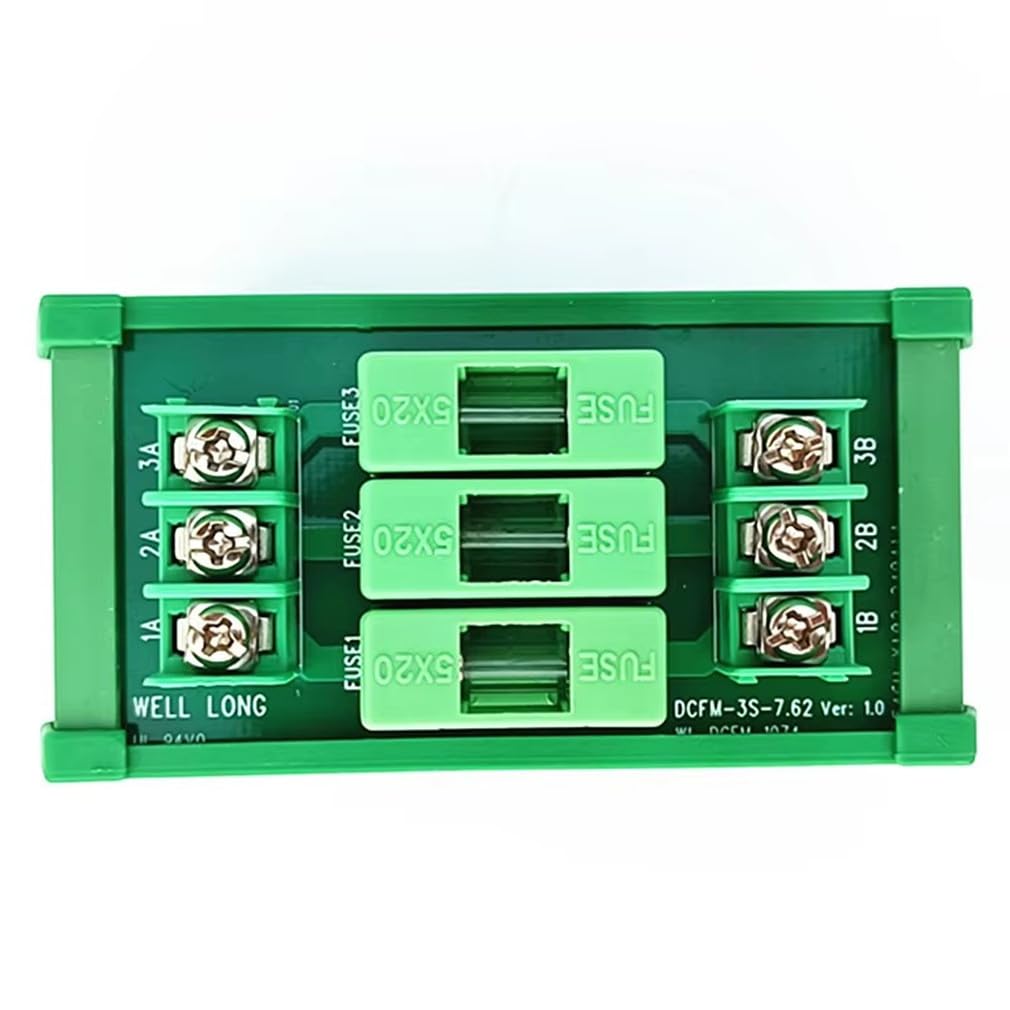

DIN Rail Mount 3 Channel Fuse Interface Module, Fuse Holder, for 5x20mm Tube Fuse.
Product details
| Management number | 247411607 | Release Date | 2026/08/16 | List Price | $5.19 | Model Number | 247411607 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
DIN Rail Mount 3 Channel Fuse Interface Module. Fuse holders for 5x20mm(DxL) tube fuse. High quality PCB housing/carrier Din rail mountable - for width 35 / 32 / 15mm rails. FR-4 fiber glass PCB, dual copper layers. External dimensions: 40 x 87 x 45mm(W x L x H). Max. work voltage: 250V Max. work current: 6.3 Amp Operating Temperature: -20ºC to 50ºC Terminal block specifications: Terminal Pitch 7.62mm screw terminal block. Wire range: 22 ~ 12 AWG.Strip length: 7mm.Screws - M3, steel,Cr3+ Zn plated.Pin header and Cage - Bras
- DIN Rail Mount 3 Channel Fuse Interface Module. Fuse holders for 5x20mm(DxL) tube fuse.
- High quality PCB housing/carrier Din rail mountable - for width 35 / 32 / 15mm rails.
- FR-4 fiber glass PCB, dual copper layers. External dimensions: 40 x 87 x 45mm(W x L x H).
- Max. work voltage: 250V Max. work current: 6.3 Amp Operating Temperature: -20ºC to 50ºC
- Terminal Pitch 7.62mm screw terminal block. Wire range: 22 ~ 12 AWG.Strip length: 7mm.Screws - M3, steel,Cr3+ Zn plated.Pin header and Cage - Bras
| ASIN | B0F3TPCCLS |
|---|---|
| Color | Green |
| Model | DCFM-1074-G3 |
| Pitch | 0.1 inches |
| Voltage | 250 |
| Brand Name | SZ-WEEL LONG |
| Part Number | DCFM-1074-G3 |
| Manufacturer | XUHONG |
| Material Type | Plastic |
| Mounting Type | DIN Rail Mount |
| Connector Type | Screw |
| Current Rating | 6.3 A |
| Number Of Poles | 3 |
| Number of Items | 1 |
| Specification Met | UL |
| Temperature Range | -20to50 °C |
| Number Of Contacts | 3 |
| Included Components | Terminal Block, screw terminal block, Din Rail Mount |
| Number of Positions | 3 |
| Item Dimensions W x H | 1.57"W x 1.57"H |
| Upper Temperature Rating | 50 °C |
