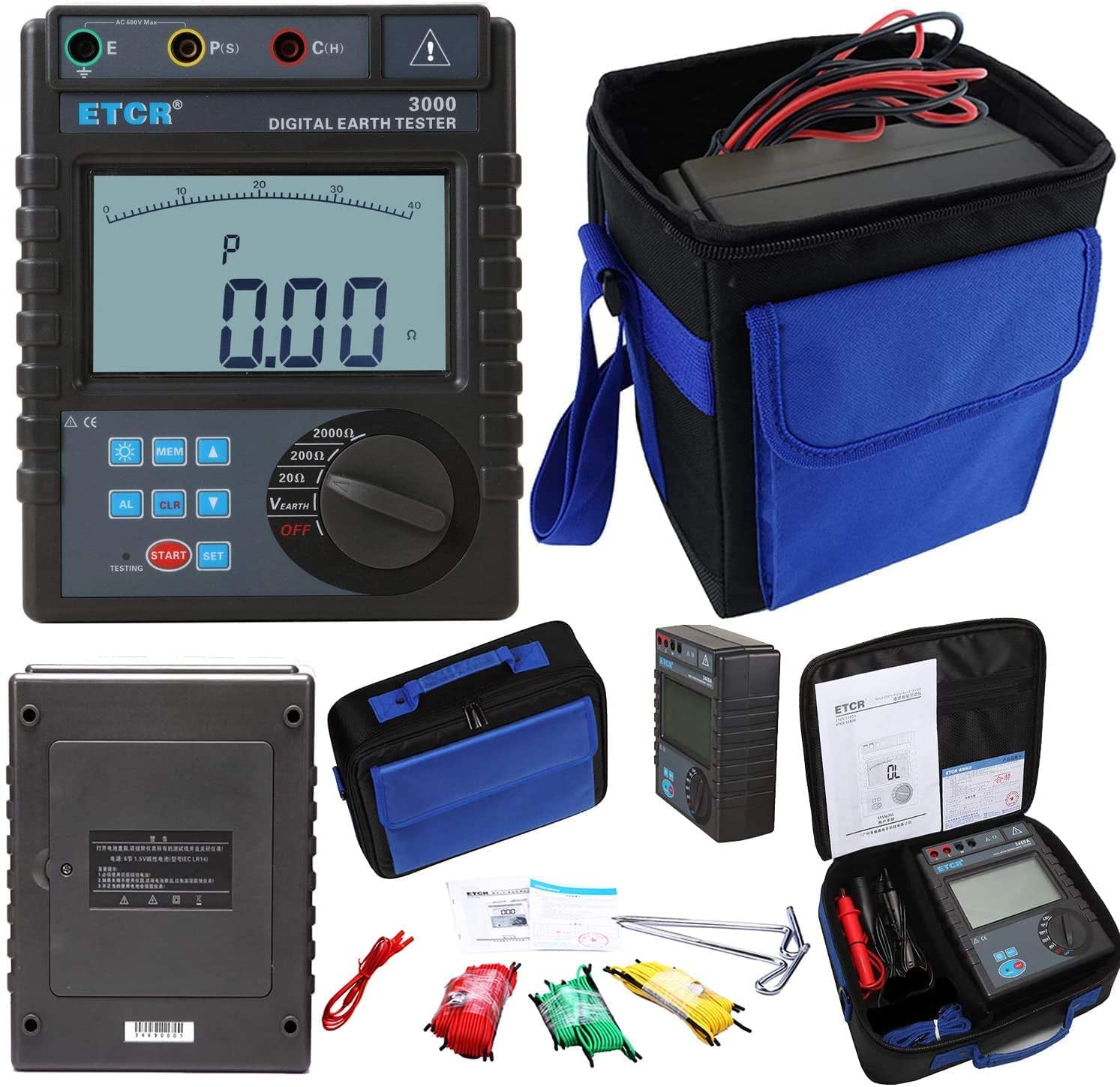

Digital Earth Resistance Tester Ground Resistance Meter with Data Storage Data Reading Function Measuring Range 0.01Ω to 2000Ω

Digital Earth Resistance Tester Ground Resistance Meter with Data Storage Data Reading Function Measuring Range 0.01Ω to 2000Ω Specification: ❤Earth Resistance: Range:0.01Ω~2000Ω; Resolution:0.01Ω; Accuracy:±2%rdg±3dgt Batteries are not included durring the shipping ❤ Earth Voltage: Range:0V~600V AC; Resolution:1V; Accuracy:±2%rdg±3dgt ❤ Power Supply: DC 9V (Zi-Mn dry battery R14S 1.5V 6 PCS, continuous standby for 300 hours ) ❤Tester Dimension: 215mm(L)×178mm(W)×83mm(H) ❤Weight:1443g ❤Measurement Times: Over 5000 times (20Ω range measuring 10Ω for one time and repeat after 25 seconds) ❤Measurement Time: Over 5000 times (20Ω range measuring 10Ω for one time and repeat after 25 seconds) ❤Measurement Time: Voltage to earth : 3 times/second; Earth resistance: 5 seconds/time ❤Data Storage 400 sets, flash "FULL" symbol to indicate storage is full ❤Data Hold: Data hold function:"HOLD" symbol display ❤Data Read: Data read function: "READ" symbol display ❤Overflow Display: Exceeding measuring range overflow function: "OL" symbol display ❤Line Voltage: Measuring earth voltage : AC 600V MAX ❤Auxiliary Earth Rod: 2 PCS: Φ10mm×150mm ❤Testing Wires: Red 15m, yellow 10m, green 5m, red 1.6m, green 1.6m(total 5pcs) ❤Alarm Function: Measurement value exceed alarm setting value, LCD” ” symbol flash and alarm ❤Auto Power-off: 15 Minutes after power on, will outage and automatic power off ❤Overload Protection: Earth resistance: between each interfaces of E-P,E-C, AC 280V/3 seconds ❤Electromagnetic Features: IEC61010-4-3,Wireless frequency electromagnetic field≤1V/m ❤Working current: Backlight:25mA Max; System standby: 25mA Max; Measurement:70mA Max ❤Accessories Tester:1PC; Earth Rod:2PCS; Testing Wire:3PCS; Simple testing wire:2PCS

• Grounding resistance range: 0.01Ω~2000Ω
• It has the functions of data storage and data reading.
• Accuracy Class: ±2%rdg±3dgt
• Display Mode4-digital super-large LCD display, blue screen backlight, LCD dimension: 128mm×75mm; Display field:124mm×67mm
• Using the latest digital and micro processing technology, unique metal method, earth resistance measurement 3 or 2 resistance verification function, anti-interference ability, can adapt to the environment, measurement, to ensure high precision, high stability, and high reliability
