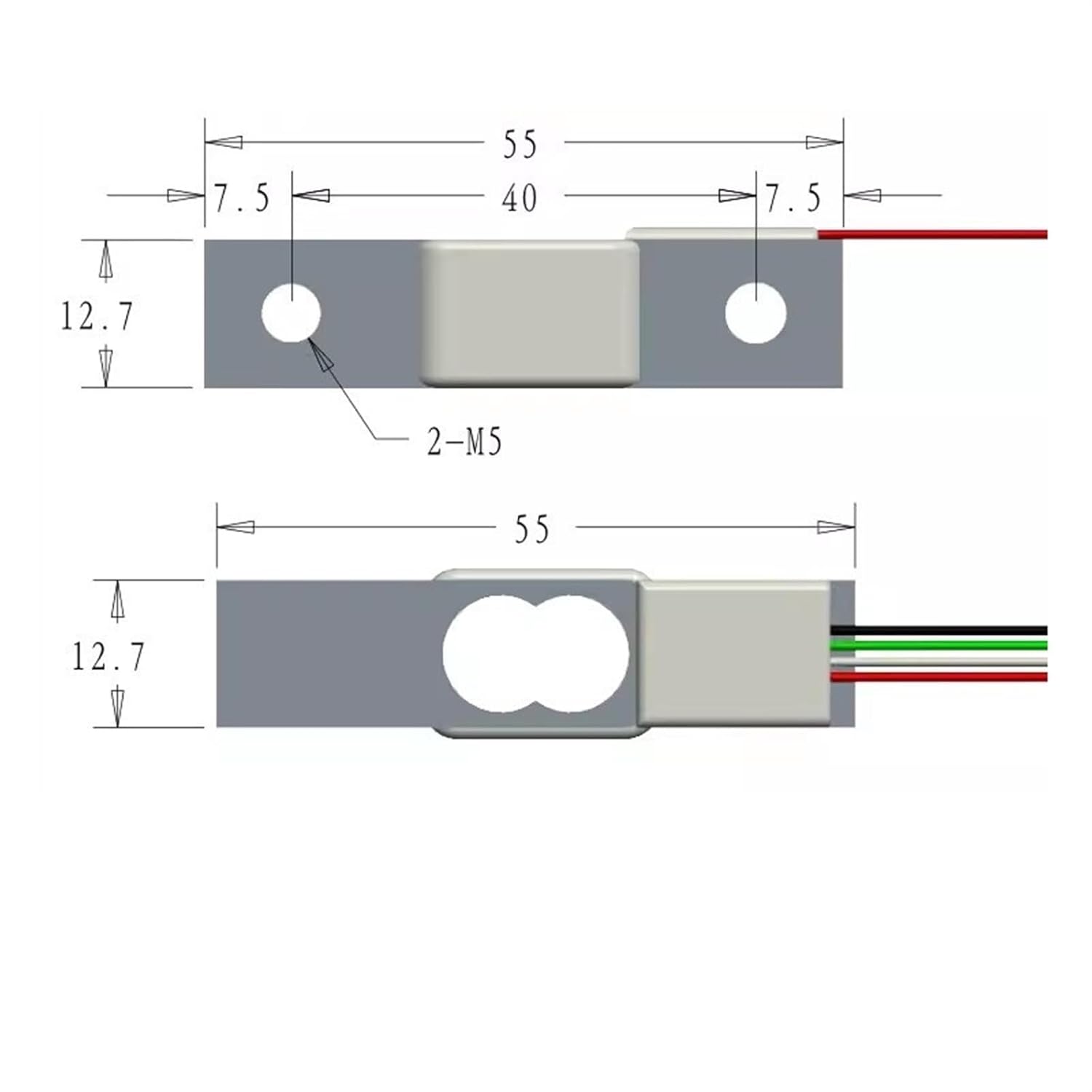

CZL-635 Load Cell 1-50KG Weight Sensor Module Electronic Scale Aluminum Alloy Weighing Pressure Force Tester for DIY Electronic(5KG)

CZL-635 Load Cell 1-50KG Module Weight Sensor Electronic Scale Aluminum Alloy Weighing Pressure Sensor For Lab Mini TypeSpecifications:Theory : Resistance SensorUsage : Pressure SensorMaterial : MetalType : vibration sensorOutput : Analog SensorCapacity : 1-5kgOutput sensitivity : 1.0±0.2MV/VZero point output : ±0.5%F.SNonlinear : 0.05%F.SHysteresis : 0.05%F.SRepeatability : 0.05%F.SCreep(30 minutes) : 0.05%F.SInput resistance : 1000±10%Output resistance : 1000±10%Opearting temperature range : -10-+50Zero tempearture drift : 0.05%F.S/10Sensitivity temperature drift : 0.05%F.S/10Insulation resistance : 2000MExcitation voltage : 3-10VSafe overload : 120%F.SExtreme overload : 150%F.SComprehensive accuracy : 0.05%F.SMode of connection : Input+ : Red, Input- : Black, Output+ : Green, Output- : White

• Input resistance : 1000±10% Output resistance : 1000±10% Opearting temperature range : -10-+50
• Zero tempearture drift : 0.05%F.S/10 Sensitivity temperature drift : 0.05%F.S/10
• Insulation resistance : 2000M Excitation voltage : 3-10V
• Safe overload : 120%F.S Extreme overload : 150%F.S
• Comprehensive accuracy : 0.05%F.S Mode of connection : Input+ : Red, Input- : Black, Output+ : Green, Output- : White
