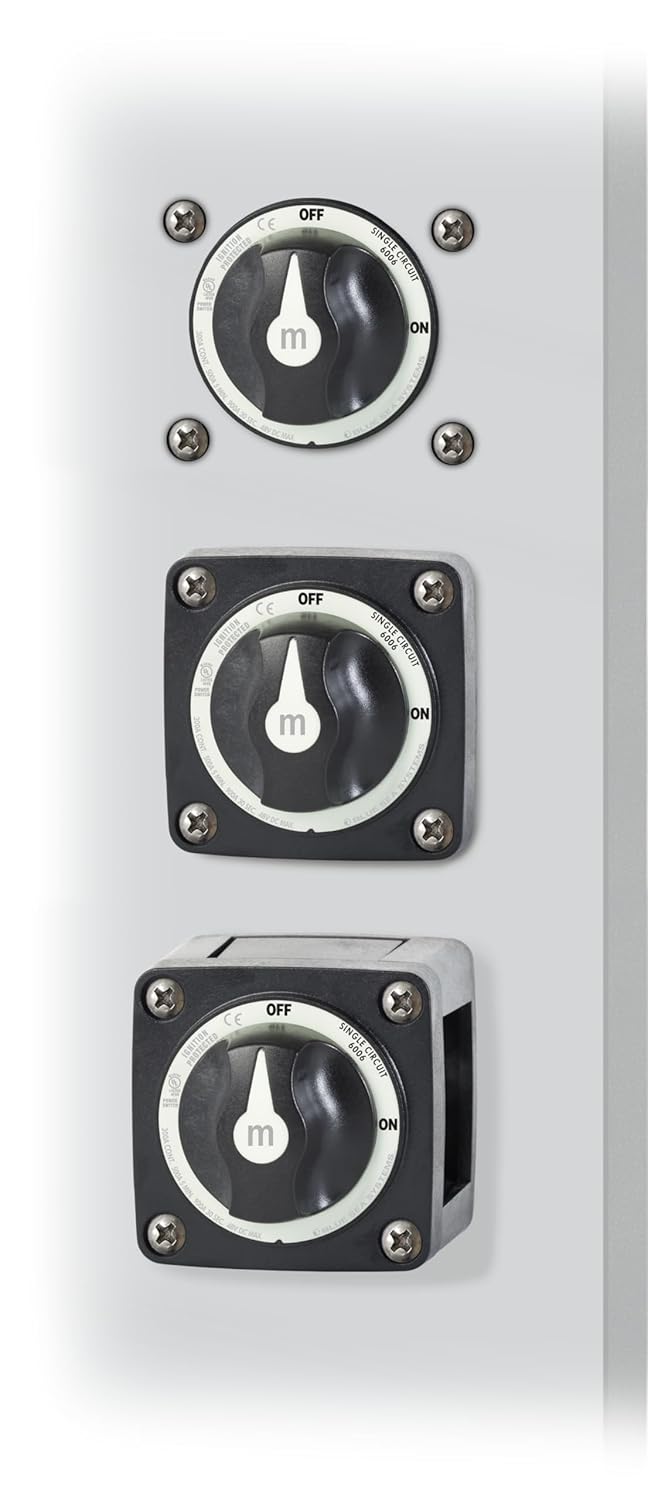

Blue Sea Systems On/Off Battery Switch With Knob, Black, 6006200 m‑Series
Product details
| Management number | 220649541 | Release Date | 2026/05/03 | List Price | $15.04 | Model Number | 220649541 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
This compact battery switch is designed to manage a single battery connected to a single load group and supports flexible installation in a variety of panel or engine room layouts. Its small footprint and three available mounting options make it suitable for areas with limited space. The switch includes ignition protection for use in gasoline powered engine compartments, allowing safe placement in locations that require protected components. The tactile surface of the switch face and the removable knob help support operation in low light conditions and contribute to preventing unintended power flow during electrical system service. Tin plated copper terminal studs are built as a single piece and provide sufficient length for connecting multiple cables while supporting secure fastening. With its combination of protective features, connection capacity, and adaptable mounting options, this switch offers a practical solution for managing basic battery control needs in marine electrical systems.
- COMPACT DESIGN: Supports installation in tight spaces; helps fit the unit into limited mounting areas
- MOUNTING OPTIONS: Offers surface, rear, or front mounting choices; allows flexible placement to suit various panel layouts
- ON OFF SWITCH: Features a removable knob to help prevent accidental current flow in the DC system; supports safer handling during electrical system service
- IGNITION PROTECTION: Suitable for installation in engine rooms of gasoline powered boats; helps meet location requirements for protected components
- COPPER STUDS: One piece tin plated copper studs measure 7/8 in and accept multiple cables; provide a durable connection point
- Switches a single battery to a single load group (on/off)
- Ignition protected-safe for installation aboard gasoline powered boats
- Case design allows surface, front panel, or rear panel mounting
- Isolating cover with snap-on sections protects rear contacts
| UPC | 190283665048 632085600624 |
|---|---|
| Color | Black |
| Model | 6006200-BSS |
| Wattage | 14400 watts |
| Terminal | Physical |
| Brand Name | Blue Sea Systems |
| Unit Count | 1.0 Count |
| Item Weight | 10.4 Ounces |
| Part Number | 6006200-BSS |
| Switch Type | Rotary |
| Circuit Type | 2-way |
| Contact Type | Normally Closed |
| Control Type | on/off |
| Manufacturer | Blue Sea Systems |
| Actuator Type | Rotary |
| Material Type | Plastic |
| Mounting Type | Surface, Front Panel, or Rear Panel Mount |
| Connector Type | Clamp |
| Control Method | Touch |
| Current Rating | 300 Amps |
| Item Type Name | boating-electrical-equipment |
| Operation Mode | manual |
| Controller Type | Ring |
| Item Dimensions | 7 x 4 x 3 inches |
| Number of Items | 1 |
| Contact Material | Tin-plated Copper |
| Operating Voltage | 48 Volts |
| Compatible Devices | Marine electrical devices, DC-powered devices, Boat electrical systems, Ignition protected devices, Waterproof devices |
| Included Components | Battery Switch |
| Number of Positions | 3 |
| Connectivity Protocol | X-10 |
| Lower Temperature Rating | 1 Degrees Celsius |
| Smart Home Compatibility | Not Smart Home Compatible |
| Upper Temperature Rating | 1 Degrees Celsius |
| Compatible with Vehicle Type | Boats |
| International Protection Rating | IP66 |
| Global Trade Identification Number | 00190283665048, 00632085600624 |
| EU Spare Part Availability Duration | 5 Years |
