AURSINC NanoVNA-H Vector Network Analyzer with 32GB SD Card, and AURSINC Test Demo Set Tool Testboard Kit

Our nanovna is only compatible with low-speed and supports SPI mode SD card for now. Package include NanoVNA host (with battery) display: 2.8 inch TFT x1, USB Type-C data cable x1, 21cm SMA male to male RG174 RF cable x2, SMA simple calibration kit x1, SMA female to female connector x1, 32GB SD Card x1

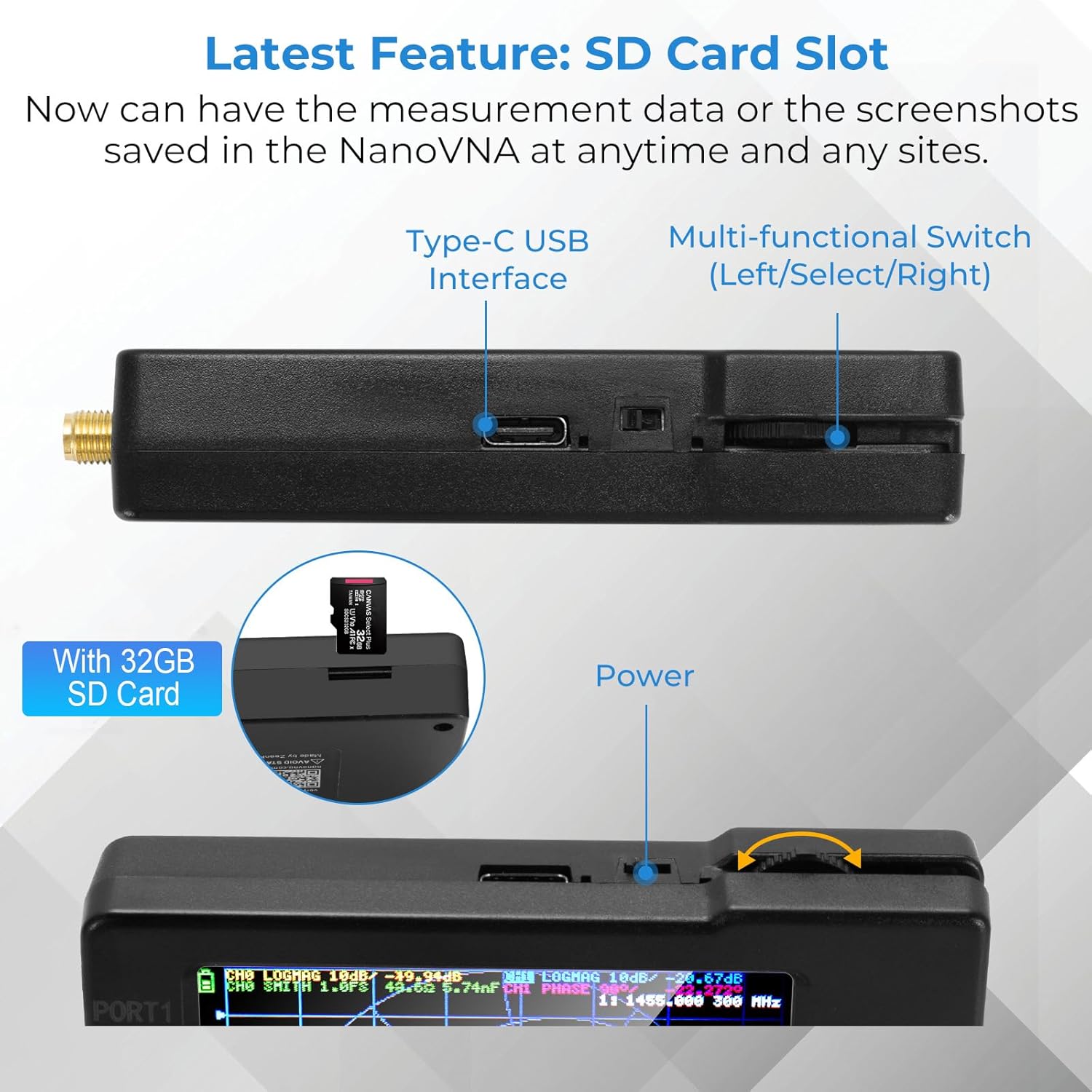

• [NEW ADDON] The build-in SD card slot and the 32gb SD card for data transfer and storage, solved the issue on saving the onsite data. You could take the nanovn-h with you at anywhere and anytime
• [UPGRADED HW V3.6] NEW HW VERSION V3.6. Added battery circuit management, more secure. Redesigned PCB, you could connect to mobile phone with Type C-Type C cable (original PCB needs OTG cable), view a clear HD image. Added a case, which is protective and dust-proof. Disply: 2.8 inch TFT (320 x240)
• [IMPROVED FREQUENCY ALGORITHM] The improved frequency algorithm can use the odd harmonic extension of si5351 to support the measurement frequency up to 1.5GHz. The 50K-300MHz frequency range of the si5351 direct output provides better than 70dB dynamic, The extended 300M-900MHz band provides better than 60dB of dynamics, and the 900M-1.5GHz band is better than 40dB of dynamics

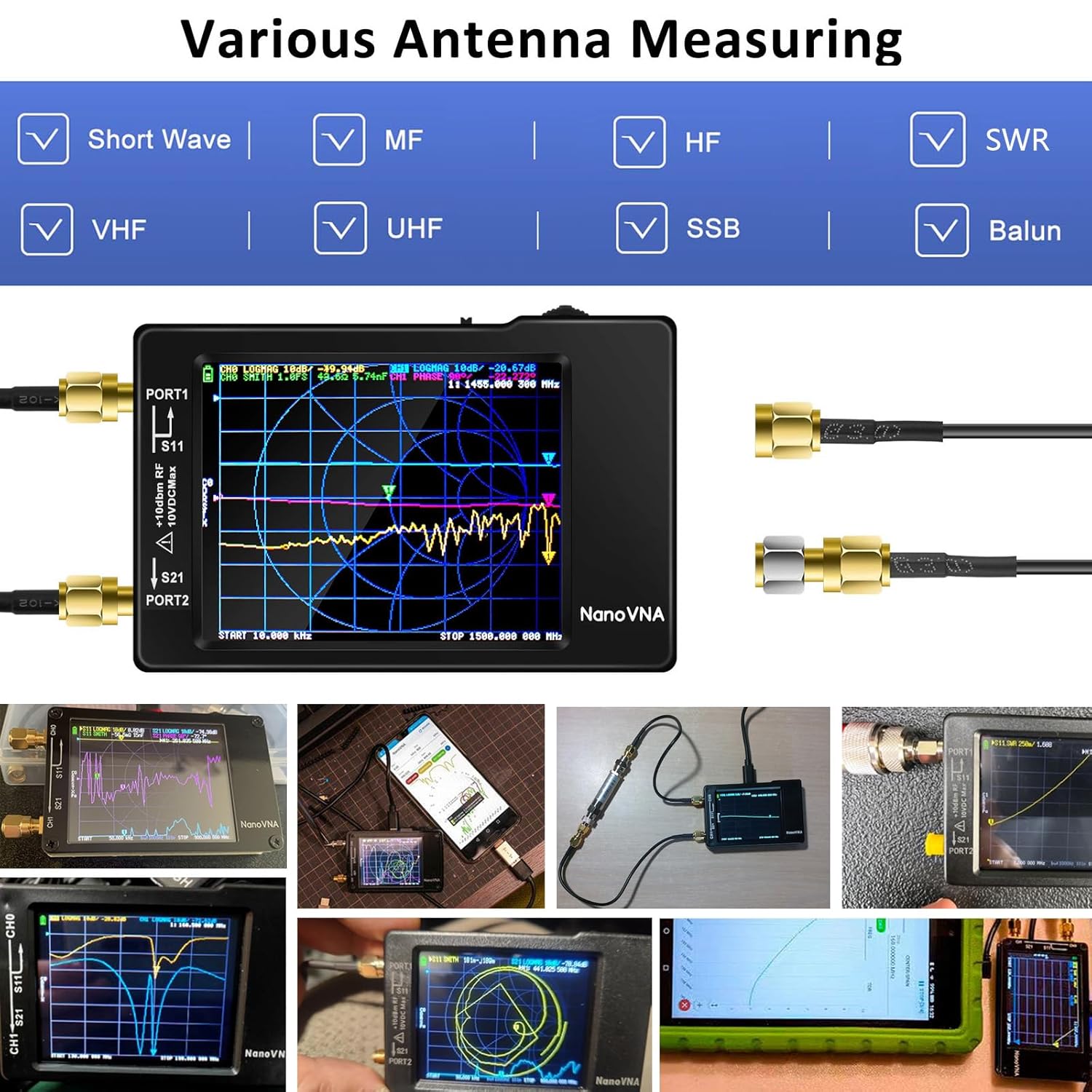

• [MULTIPLE FUNCTIONS] The default firmware main function is used for antenna performance measurement. The TX/RX method can measure the complete S11 and S21 parameters. If you need to obtain S12 and S22, you need to manually replace the transceiver port wiring. Designed a practical and simple control application on PC, you can download touchstone(SNP) files for radio design and simulation software
• [TESTBOARD KIT] The Testboard kit allows NanoVNA users to assemble a useful Component jig to quickly assemble a simple RF circuit and evaluate their performance on the NanoVNA
