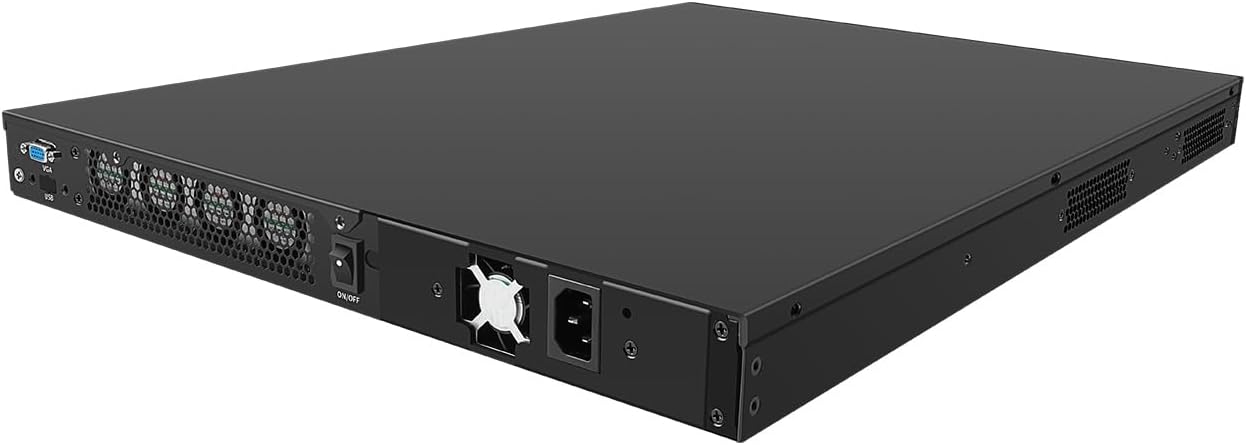

1U Firewall Appliance XEON Server with IPMI, OPNsense, VPN, 2 x E5 2699 V3, RJ66, C612, 2 x I210 I211 LAN, 4 x X710 SFP+, 6 x I226-V LAN, 0 RAM, 0 Storage, Barebone No System
Product details
| Management number | 212363094 | Release Date | 2026/04/06 | List Price | $36.00 | Model Number | 212363094 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Please note: This is a barebone only. A system memory, a storage drive and an operating system are needed to complete this system Model Number: HUNSN RJ66 CPU: 2 x Intel Xeon Processor E5-2699 v3 45M Cache, 2.30 GHz AES-NI Supported: Yes Chipeset: Intel PCH C612 Memory: 7 x ECC/ECC-REG DIMM DDR4 1600/1866/2133 MAX 256G, each slot supports up to 32G,a single CPU supports up to 128G, dual CPUs support up to 256G memory Storage: 1 x mSATA SSD, 1 x CF, 2 x M.2 NVMe PCle 3.0 x4 2280, 2 x 2.5/3.5 Inch SATA SSD/HDD I/O Interface: Console, IPMI, 2 x USB2.0, 2 x I210 / I211 LAN, 4 x X710 SFP+, 6 x I226-V LAN, VGA Aspeed AST2400,Power Switch, AC Socket Expansion: 3 x PCI-E x8 / 1 x PCI-E x16, 1 x Mini PCIE slot for WiFi Chassis: 1U 19 inch cabinet, rackable, with mounting bracket ears, wall hanging, foot pad Network Card: 1 x RTL-8211 E IPMI, 2 x Intel I211/I210 LAN, 4 x SFP+ model is 10GbE X710, 6 x 2.5GbE 226-V WAN-LAN Throughput: Throughput through 1 gigabit nic from lan to wan forwarding speed is 1GbpsThroughput through 2.5 gigabit nic from lan to wan forwarding speed is 2.5GbpsThroughput through 10 gigabit optical from lan to wan forwarding speed is around 5Gbps or more Cooling System: The processor uses the ball silent cooling fan to ensure the long time work and stable cooling Power: 800W 100-240V 50Hz/60Hz Size: 440 x 600 x 45mm Weight: 8.7kgs Packing List: HUNSN RJ66 firewall appliance, rackable ears, power cord, warranty card System Compatibility: 5.10.x and above core-based freebsd router systems, linux distros, or win.os supported. UEFI support onlyCompatibility:firewalls for pfsense, opnsense and other popular open-source software solutions
- HUNSN RJ66 equipped with intel xeon processor e5-2699 v3, compatible with many freebsd based router systems, linux distros, or win.os supported, easy configuration and management, support intel aes new instructions
- Please note, this is a barebone only. A system memory, a storage drive and an operating system are needed to complete this system
- Standard 1u, atx power, with power cord, make sure to use a big brand memory and ssd with quality assurance, ready to run straight out of the box

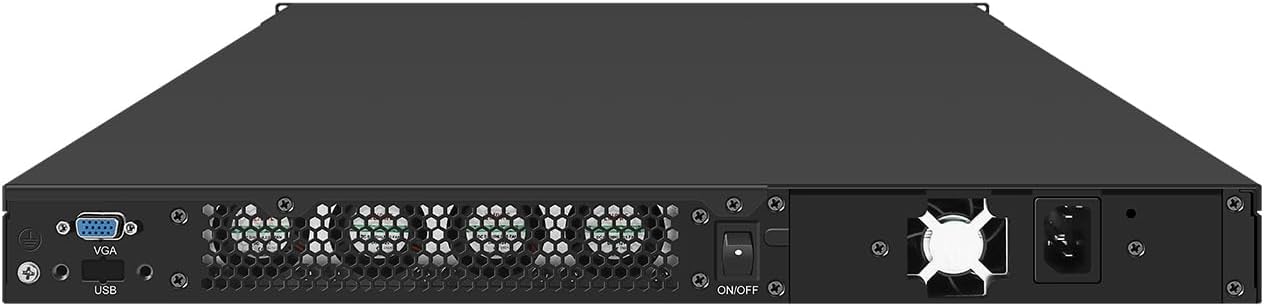

- Designed with console, ipmi, 2 x usb2.0, 2 x i210 / i211 lan, 4 x x710 sfp+, 6 x i226-v lan, vga, power switch, ac socket, size at 440 x 600 x 45mm
- Original industry network motherboard, low power consumption, low heat, use dedicated turbo silent cooling fan to ensure long-term operation
| Brand | ANDAQI |
|---|---|
| Color | Black |
| RAM Type | SODIMM |
| Model Name | RJ |
| Style Name | E5 2699 V3 |
| Item Weight | 8.7 Kilograms |
| Manufacturer | Shen Zhen Shi An Da Qi Ke Ji You Xian Gong Si |
| Model Number | RJ66 |
| BuiltIn Media | Rackable ears, power cord, warranty card |
| Cooling Method | With Fan |
| Item Type Name | Firewall Appliance |
| Processor Brand | Intel |
| Processor Count | 18 |
| Processor Speed | 3.60 |
| Total Usb Ports | 2 |
| CPU Model Number | E5 2699 V3 |
| Processor Series | Intel Xeon |
| Processor Socket | FCLGA2011 |
| Compatible Devices | Gaming Console, Personal Computer, Printer, Security Camera, Smart Television, Smart Thermostat, Smartphone, Tablet |
| Hardware Interface | Ethernet |
| Additional Features | Access Point Mode, Alexa Compatible, Beamforming, Guest Mode, Internet Security, LED Indicator, Parental Control, QoS, Remote Access, USB Print Server |
| Hard Disk Interface | Solid State |
| Graphics Coprocessor | Aspeed AST2400 |
| Graphics Description | Dedicated |
| HumanInterface Input | Pinyin Keypad |
| Wireless Compability | 802.11ac |
| Hard Disk Description | SSD |
| RAM Memory Technology | DDR4 |
| Memory Slots Available | 7 |
| Connectivity Technology | Ethernet |
| Graphics Card Interface | PCI Express |
| Memory Storage Capacity | 256 GB |
| Ram Memory Maximum Size | 256 GB |
| Specific Uses For Product | Personal, Business, Gaming, Education, Industry, Office, Multimedia |
