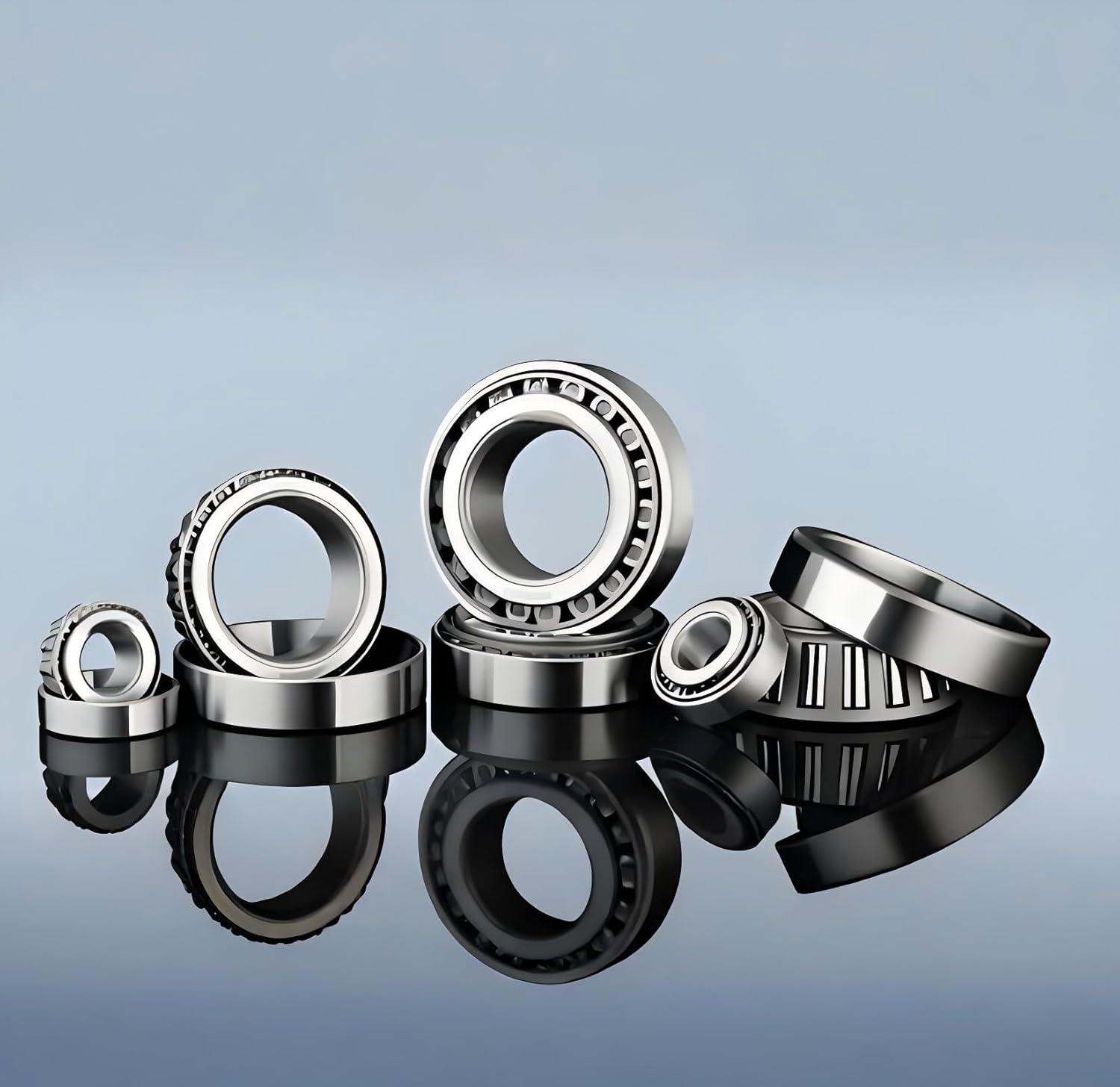

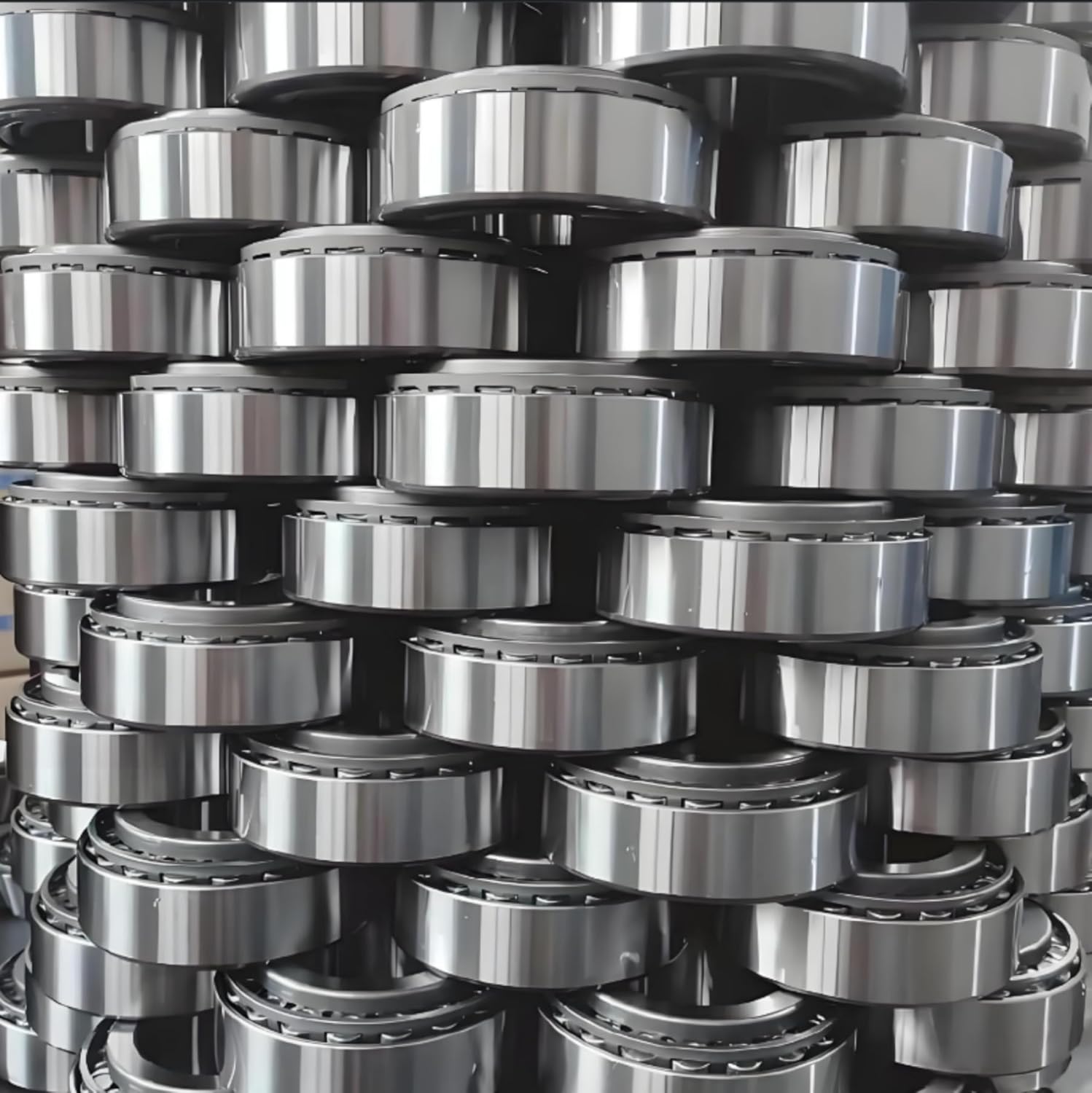

1PCS ‌594A/592A Tapered Roller Bearings Size 95.2500mm*152.0000mm*39.6880mm‌‌

The structure, assembly dimensional accuracy, and rotational accuracy of English tapered roller bearings are different from those of metric bearings. Commonly used for imported machinery or industries with special needs, the external dimensions and tolerances are expressed in imperial units, suitable for devices with imperial (usually in inches) dimensions. For example, the refer to tapered roller bearings whose external dimensions are measured in inches, originating from the United Kingdom and the United States. Its structural types also include single row, double row, four row, etc., and its working performance is the same as the corresponding metric tapered roller bearings. Imperial bearings represent the external dimensions and tolerances of bearings in imperial units, and are suitable for devices with imperial dimensions. Imperial bearings are suitable for various imperial sizes of industrial machines, small rotary machines, etc. The structural and assembly dimensional accuracy and rotational accuracy of imperial tapered roller bearings are different from those of metric bearings. Mostly used in industries with imported machinery or special needs. Correspondingly, metric bearings The inner and outer rings of tapered roller bearings have tapered raceways, with tapered rollers installed between the raceways. If the conical surface is extended, it will eventually converge at a point on the bearing axis. Conical roller bearings are mainly used to withstand combined radial and axial loads, mainly consisting of radial loads. The axial bearing capacity of a bearing is determined by the contact angle, and the larger the angle, the greater the axial bearing capacity. The tapered roller bearing is a separable bearing, with an inner ring consisting of rollers and a cage, which can be installed separately from the outer ring This type of bearing can limit the axial displacement of one side of the shaft or housing, and does not allow the shaft to tilt relative to the housing hole. Under the action of radial load, additional axial force will be generated. Therefore, generally, in the two supports of the bearing, the outer and inner rings of the bearing should be installed relative to each end face. The main uses of this type of bearing are: front and rear wheels of automobiles, transmissions, differentials, small gear shafts, machine tool spindles, construction machinery, large agricultural machinery, railway vehicle gear reducers, and rolling mill roll neck small reducers

• Bearing type: tapered roller bearing Model: 594A/592A Inner diameter (mm): 95.2500 Outer diameter (mm): 152.0000 Width (mm): 39.6880 Weight (KG): 2.540
• Bearing material:Bearing steel Gcr15 to 52100
• Installation method: Clean the bearings with gasoline or kerosene, dry them before use, and ensure good lubrication. Generally, grease lubrication is used, but oil lubrication can also be chosen. Select lubricating grease with superior properties such as impurity free, antioxidant, rust proof, and extreme pressure, with a filling amount of 30% -60% of the bearing and bearing housing volume
• Installation method: Apply equal pressure on the circumference of the ring end face, press the ring in, and avoid using tools such as pliers to directly strike the bearing end face. When the interference fit is small, a sleeve can be used to press the end face of the bearing ring at room temperature, and the sleeve can be tapped with a hammer to evenly press the ring through the sleeve. When installing in large quantities, hydraulic presses can be used. When pressing in, it should be ensured that the outer ring end face is tightly pressed against the outer shell shoulder end face, and the inner ring end face is tightly pressed against the shaft shoulder end face, with no gaps allowed
• Service commitment: Our company is available 24 hours a day online to provide you with technical support
