1pc Mini 12mm Precision Planetary Gearbox Reduction Motor 3V 3.7V 5V 6V Slow Speed Large Bevel Gear Motor DIY Toy Model(Model C with Cover_3V)

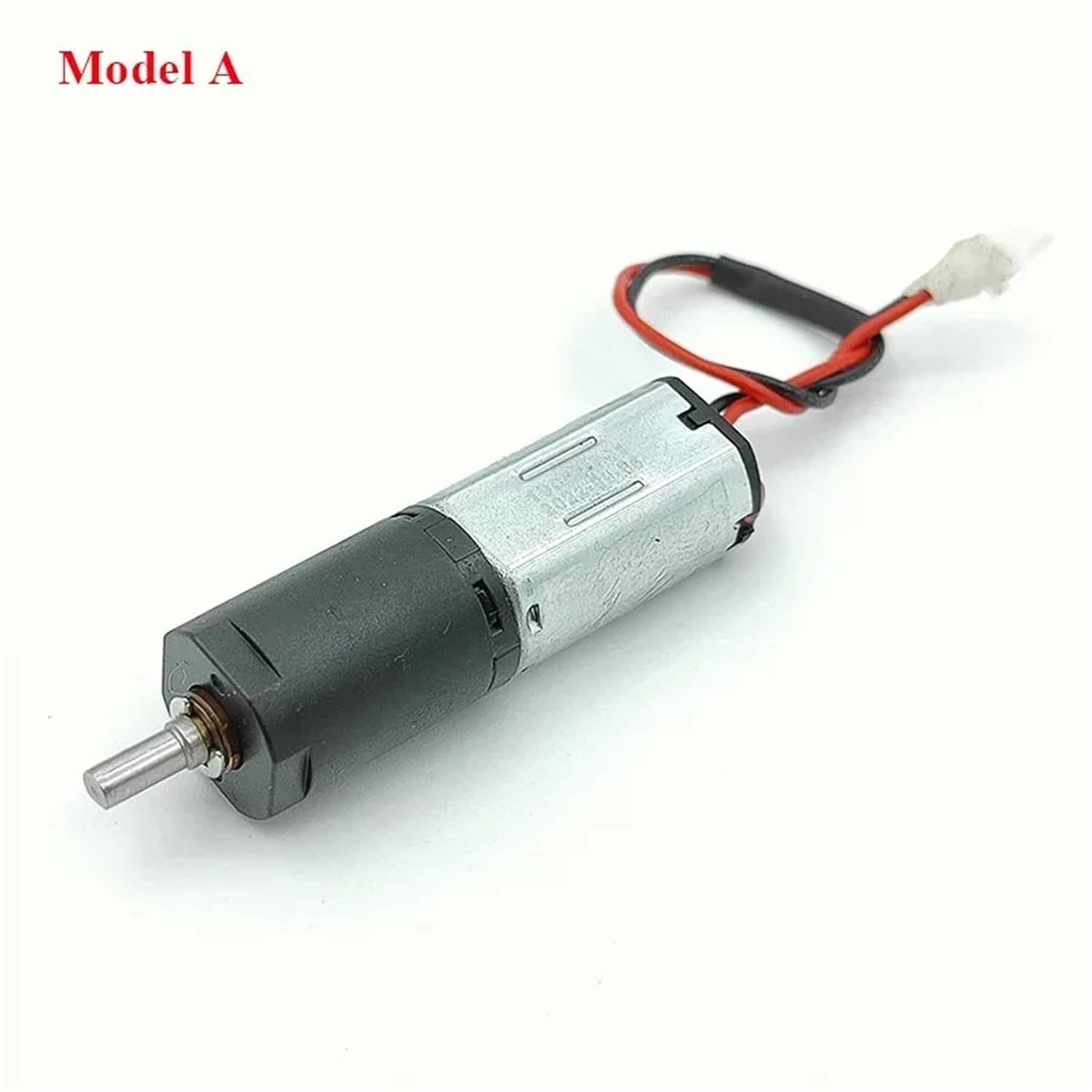

MotorsSpecification:Note: For this motor, there are three different option of gear motor, the model A is single gear motor; the model B is gear motor with bevel gear on the shaft; the model C is total gear motor componet with plastic cover. Please buyers select the suitable one model you need. Thanks.Precision 12mm planetary reduction motor, using rare earth medium strong magnetic N30 motor, with an outer diameter of 11.8mm planetary reduction box, three-stage planetary gear reduction. The first stage is a plastic gear, and the second stage is a metal gear. The planetary reduction motor also has a set of metal bevel gear to change the angle. The reduction ratio between the bevel gear is 1:1.6 .The rated voltage is 3V. The speed of the planetary reduction motor is 73 revolutions, and the output speed after further reduction by the bevel gear is about 45 revolutions.1.Model: Mini N30 planetary gear motor2.Output shaft diameter: 2.5mm (D shaft 2.3mm)3.Output shaft length: 5.5mm4.Gearbox diameter: 12mm5.Gear motor height: 36mm6.Gear motor component weight: 28g (with plactic cover)7.Suitable voltage: 3.0V-6.0V8.Test data:Voltage:3.0V Current:35mA Gear motor speed:73RPM (After bevel gear reduction:45RPM)Voltage:5.0V Current:45mA Gear motor speed:124RPM (After bevel gear reduction:77RPM)Voltage:6.0V Current:50mA Gear motor speed:149RPM (After bevel gear reduction:93RPM)=========================Package List:Gear Motor x 1PC=========================Model A : Single Gear motor=========================Model B : Gear motor with bevel gear on shaft=========================Model C : Gear motor component with plastic cover==========Hign-concerned Chemical : NoneModel Number : Mini N30 Gear MotorConstruction : Permanent MagnetProtect Feature : Explosion-proofType : Gear MotorCommutation : BrushEfficiency : IE 1
